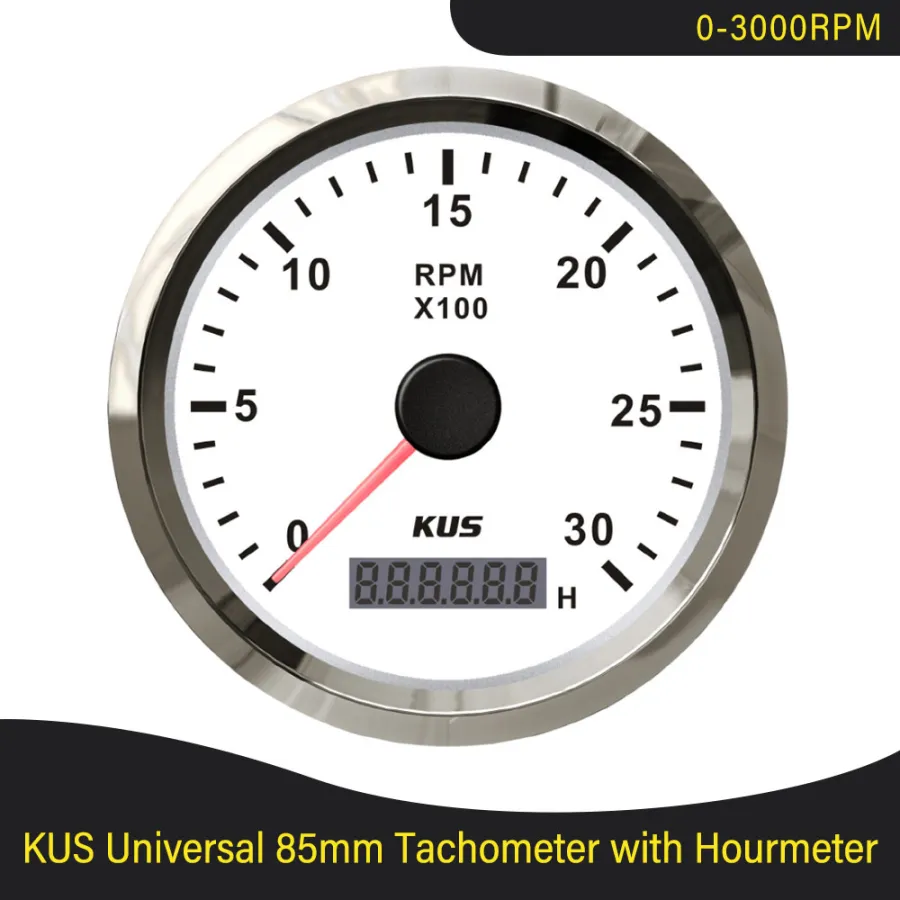

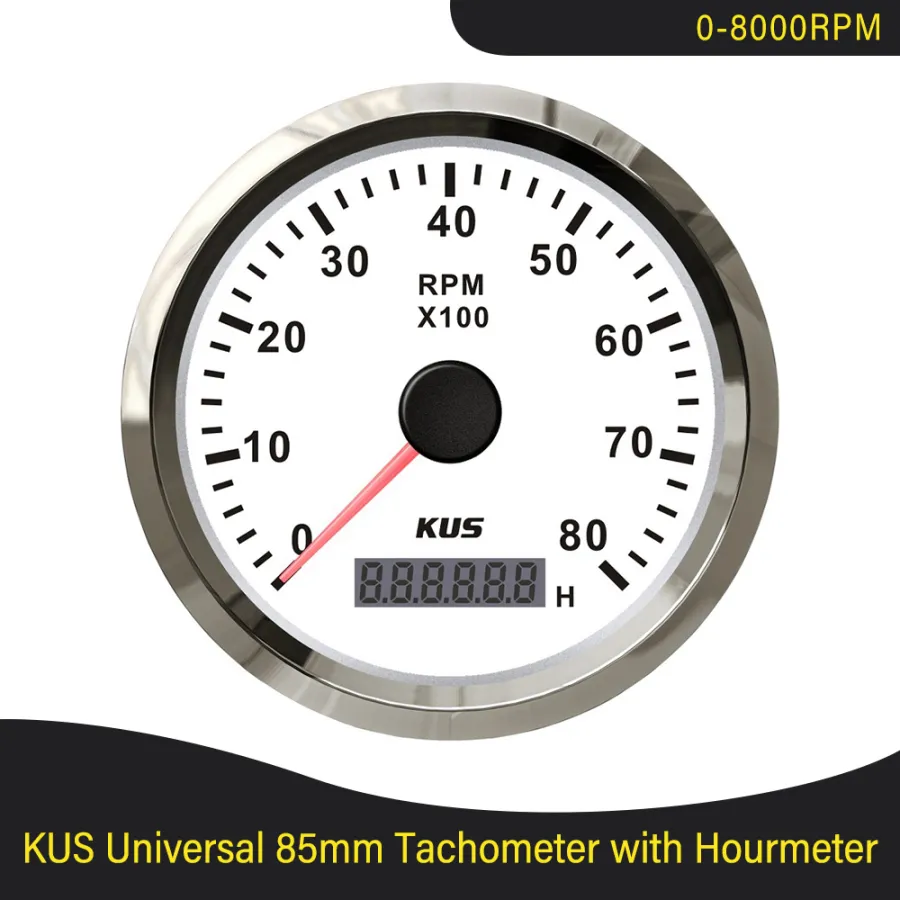

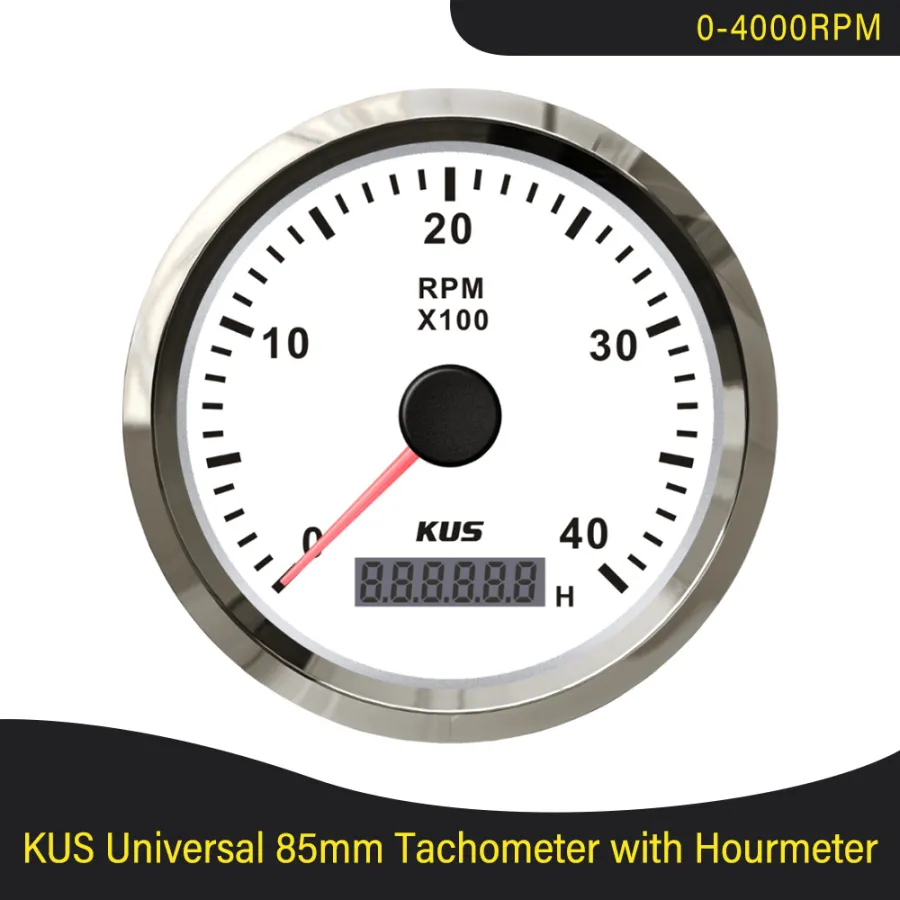

KUS 85MM Gasoline Diesel Engine Tachometer 3000RPM 4000RPM 6000RPM 8000RPM with Hourmeter Boat Truck Car RV Waterproof
5.0 (2 votes) | 2 orders
Price:
US $160.97
/ piece
Discount Price:
US $
101.58
/ piece
-37%
- Color
-
-
-Suitable for all kinds of vehicle modification, the use of stepper motor drive pointer, accurate display engine RPM, and with the LCD display clear display hour, with instructions of high precision, repeatability and versatility, reliability and stability, drive And control is relatively simple and so on

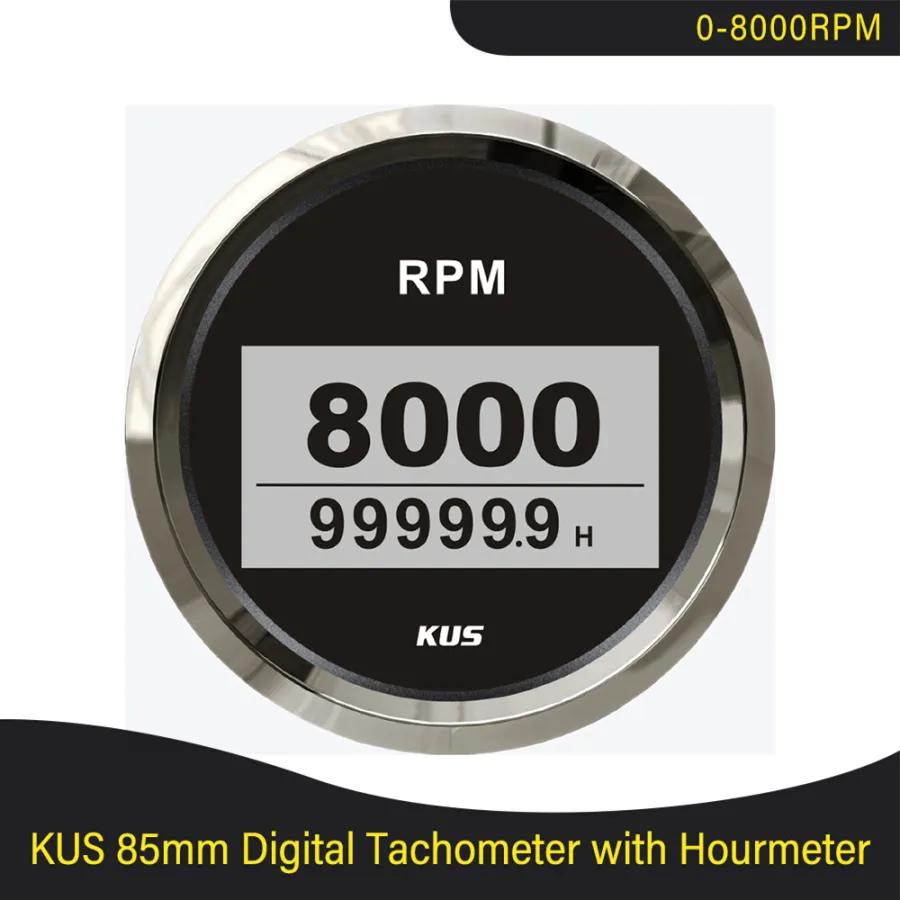

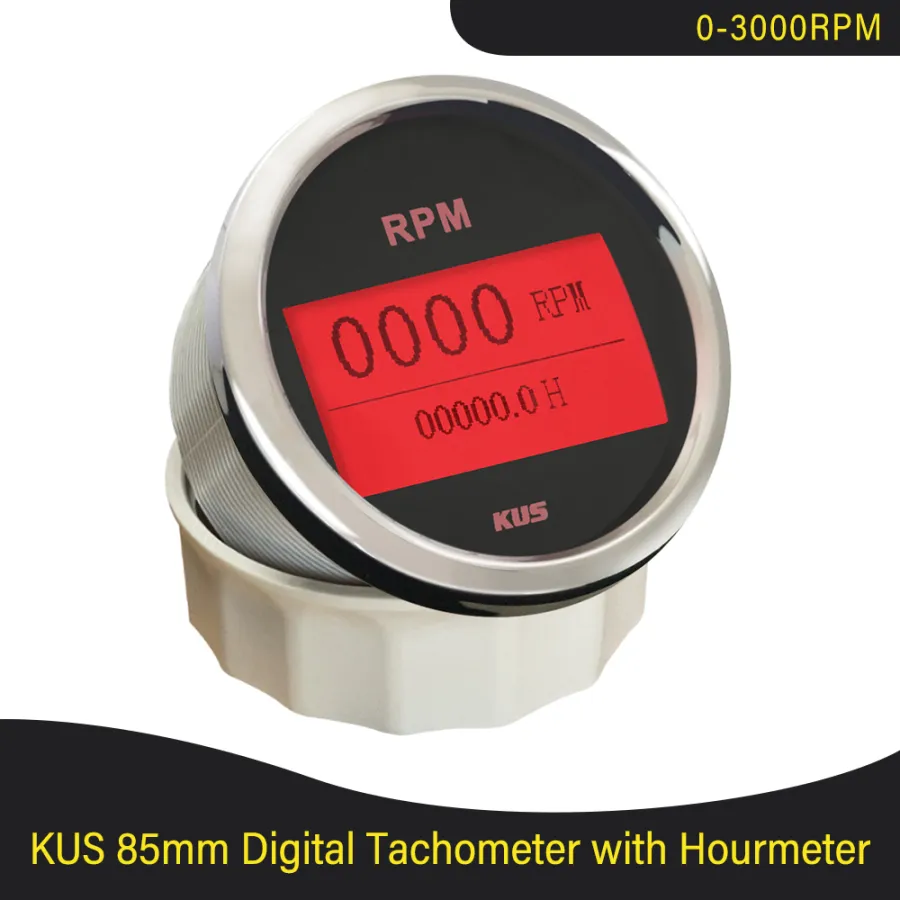

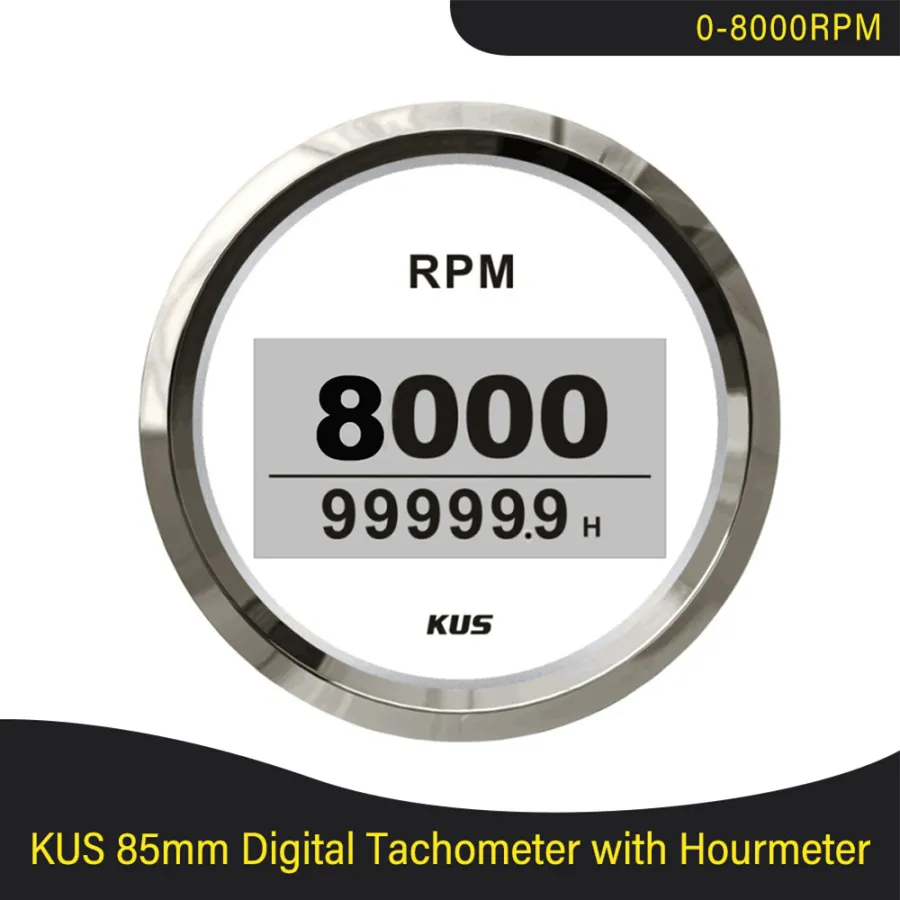

-Tachometer using stepper motor drive pointer, accurate display of the engine RPM, and with the LCD display clear display hour
-Name: Tachometer

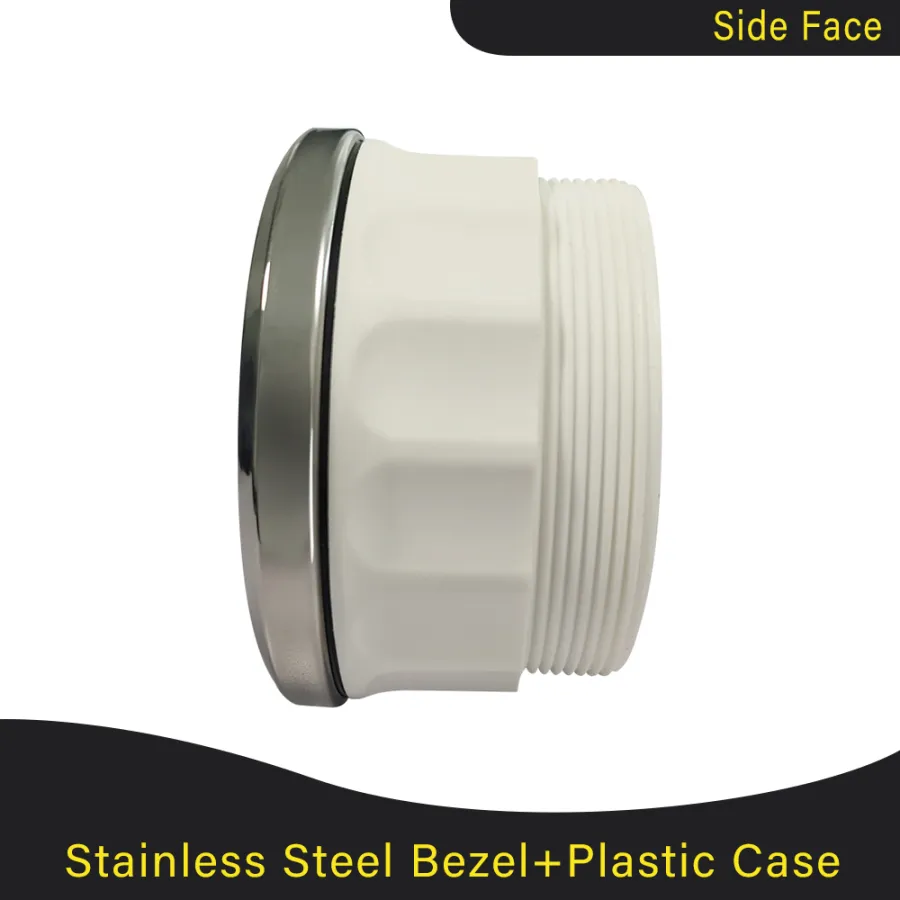

-Materials: stainless steel+nickel-plated plastic
-Operating Voltage: 12V/24V
-Connection: Red-Battery(+9-32VDC) Blue-Battery(-) Black-Signal Orange/Yellow-Backlight(+9-32VDC)

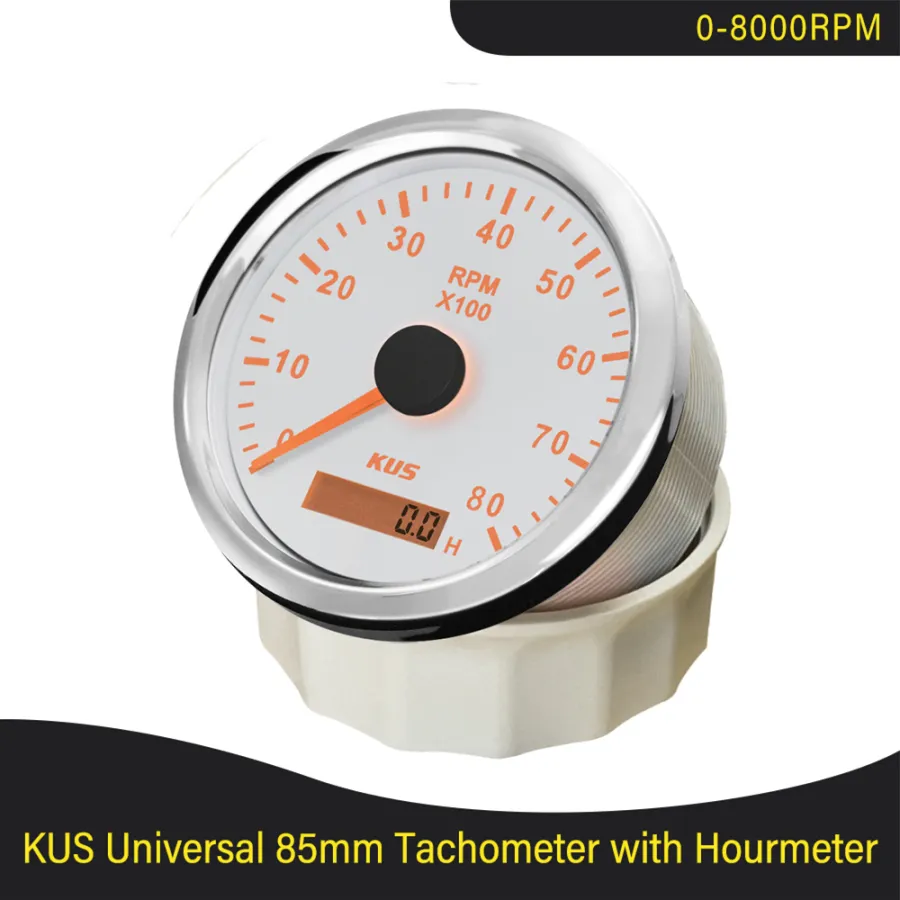

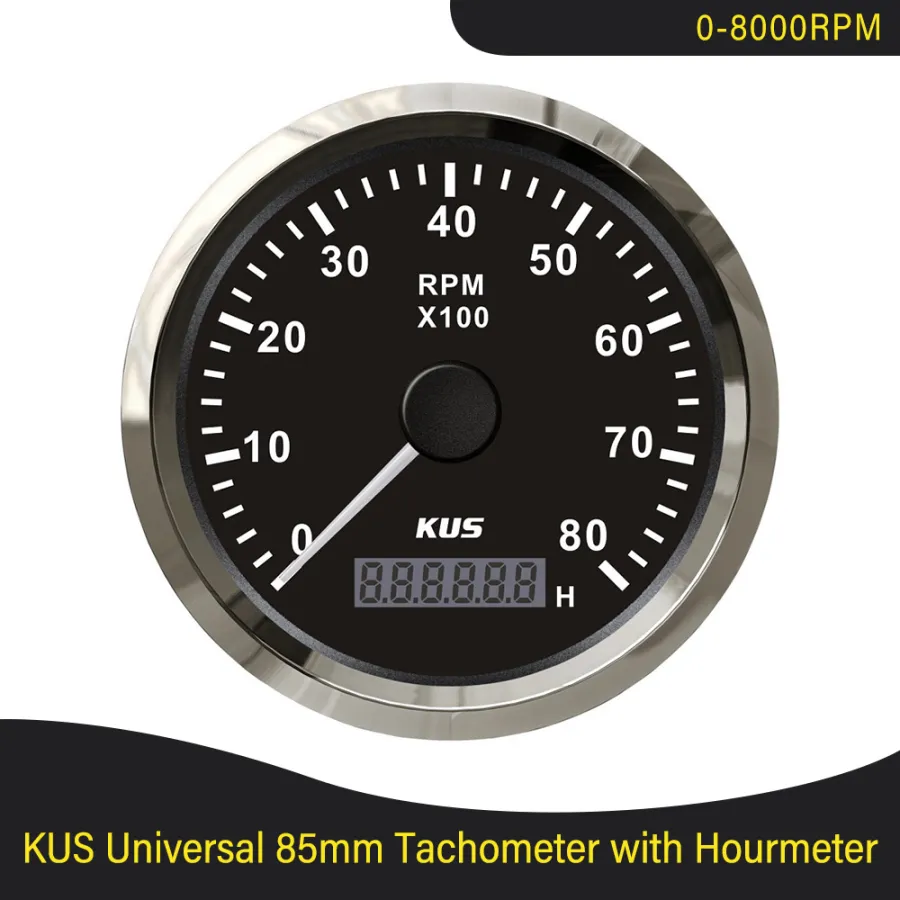

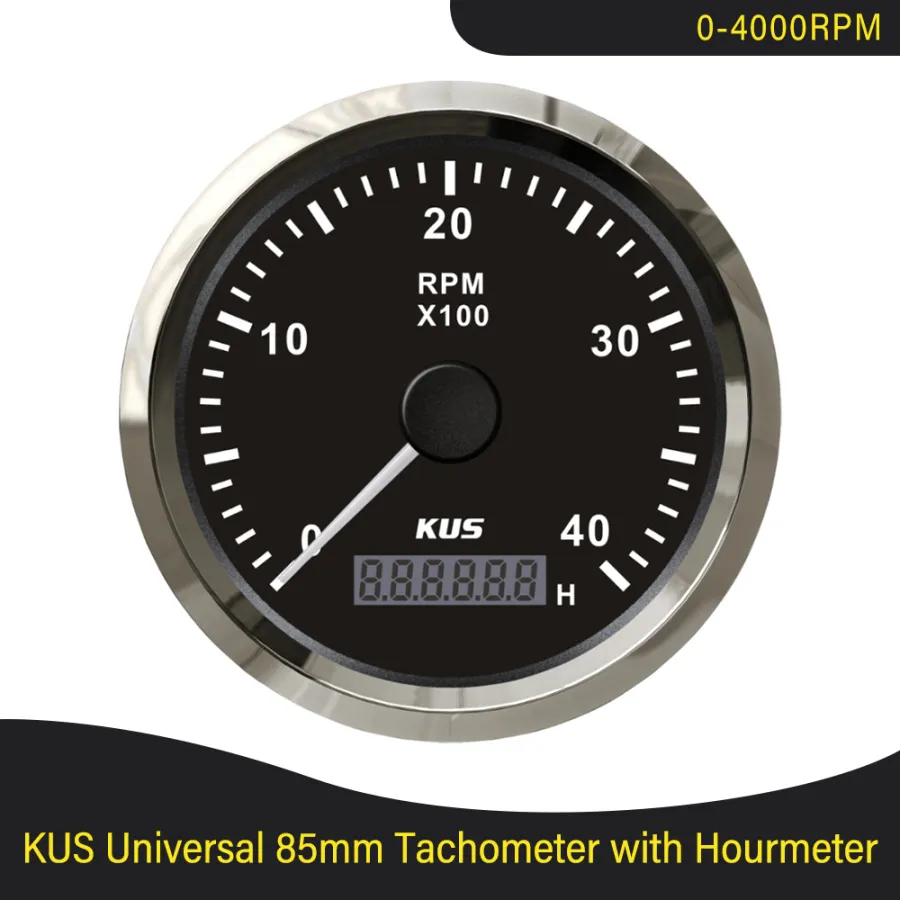

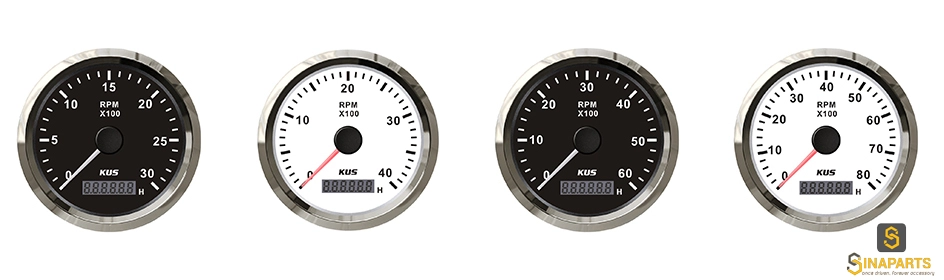

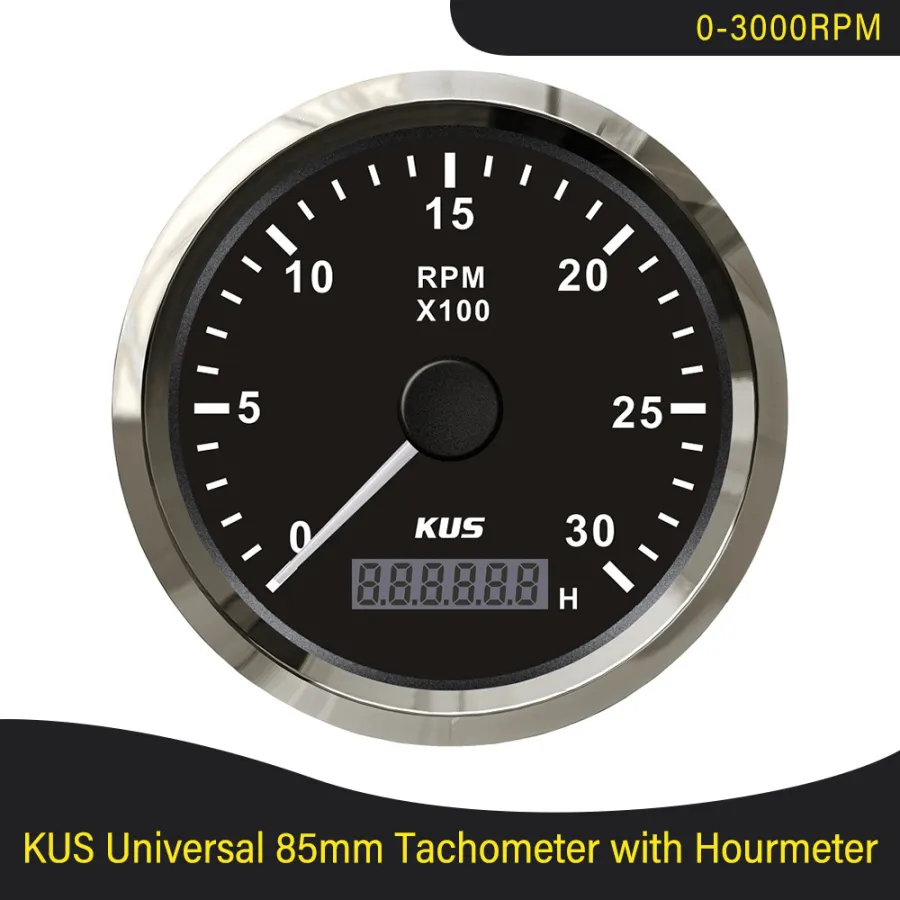

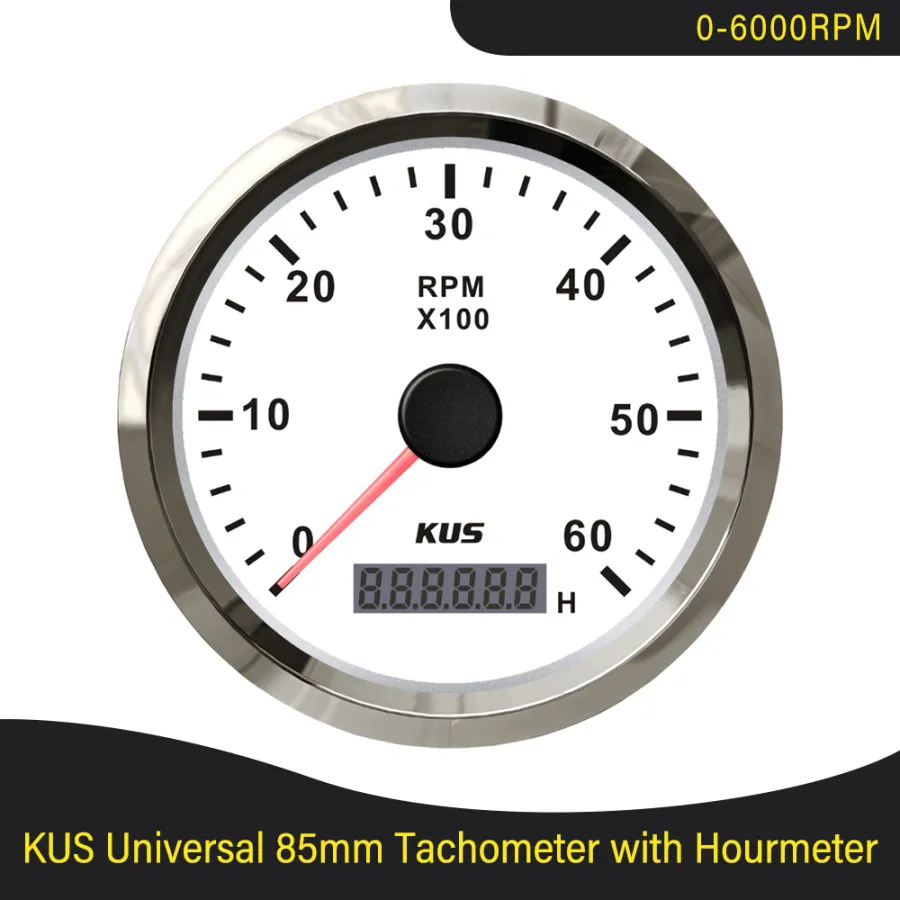

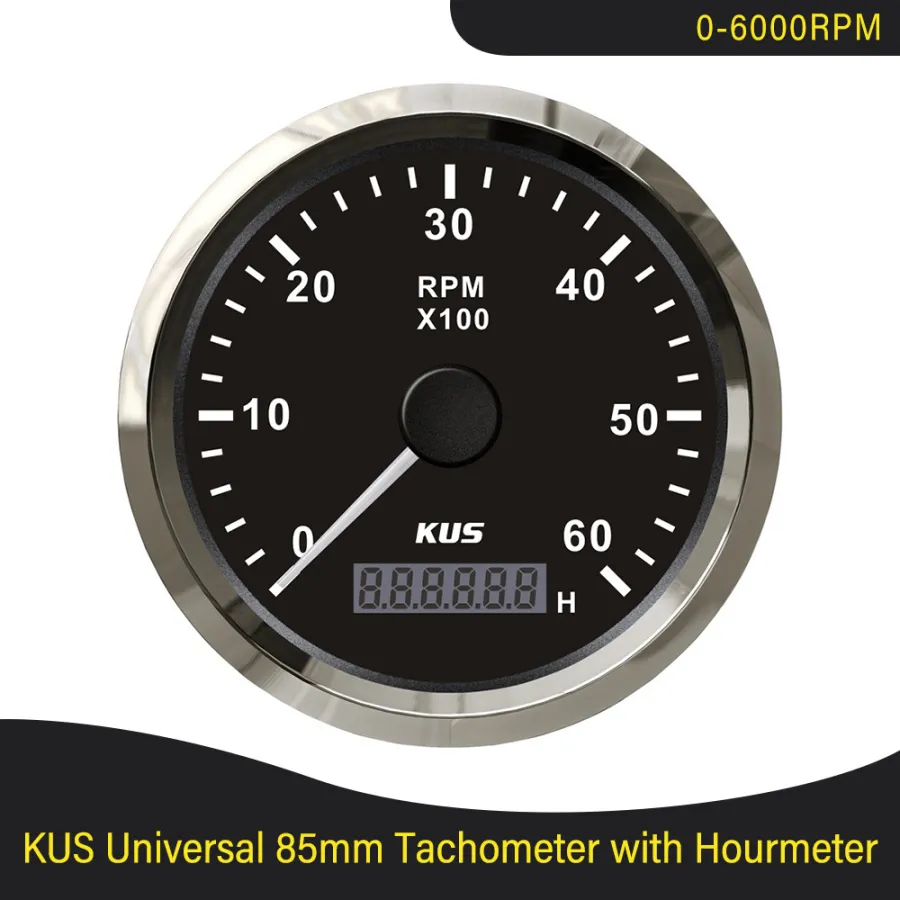

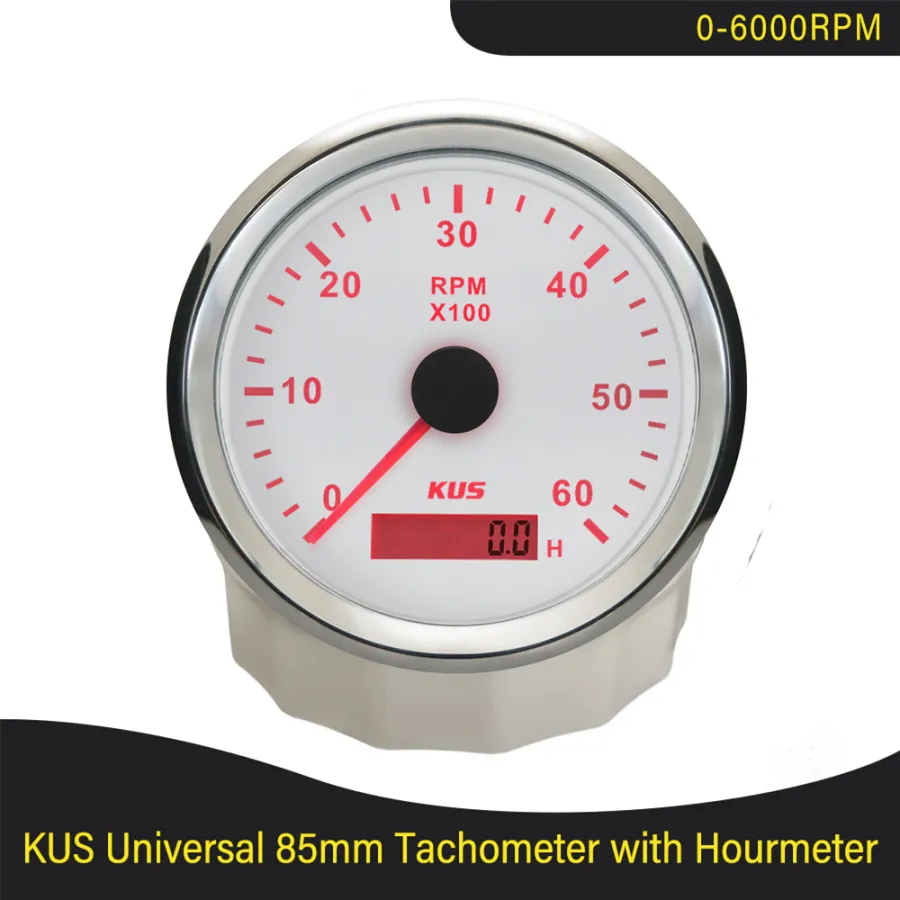

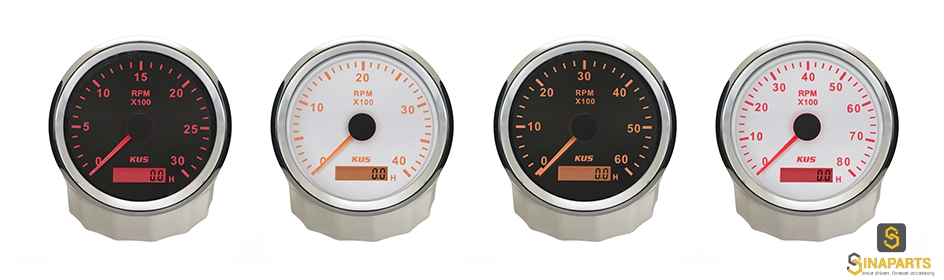

-Indicating Range: 0-3000RPM 0-4000RPM 0-6000RPM 0-8000RPM
-Input Signal: Pulse Signal from tacho sensor, engine, alternator, ignition coil, crankshaft sensor, etc.
-Adjustable speed ratio: 0.5-250 for 0-3000RPM, 0-4000RPM, 0-6000RPM / 1.0-10.0 for 0-8000RPM
-Protection Class: IP67, can work underwater 1 meter position

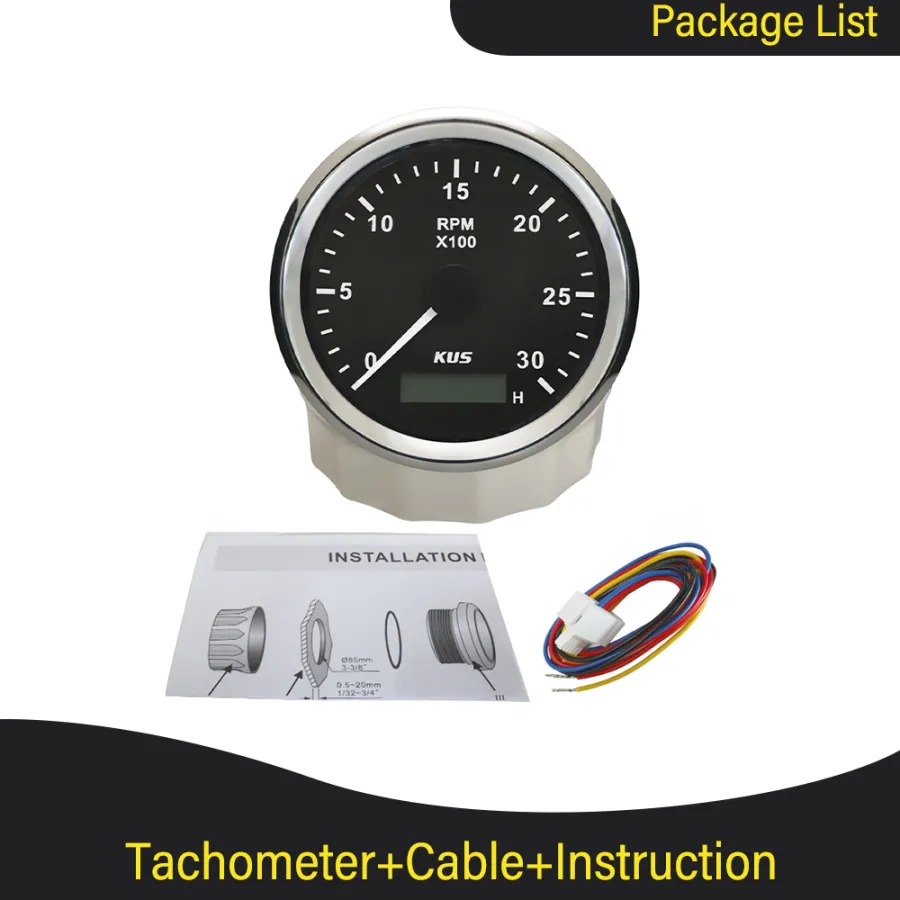

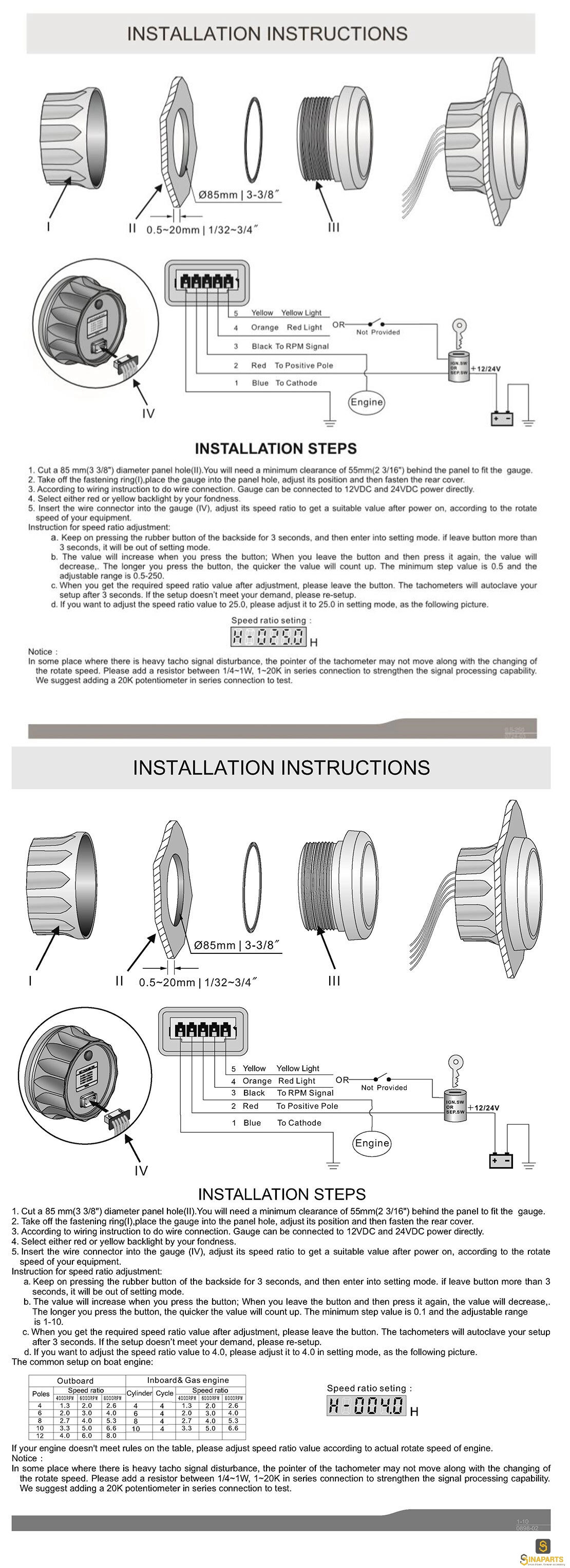

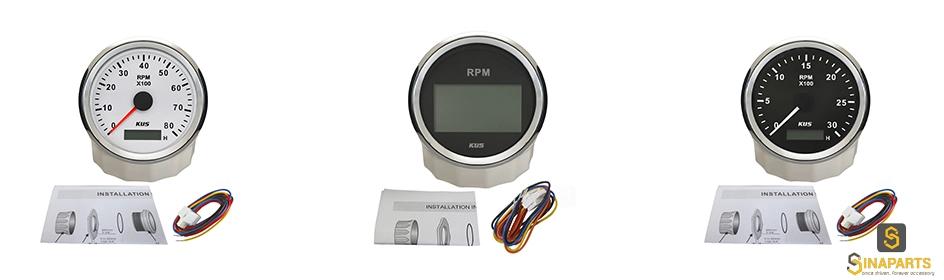

1 x Tachometer 1 x Cable 1 x Installation Instructions

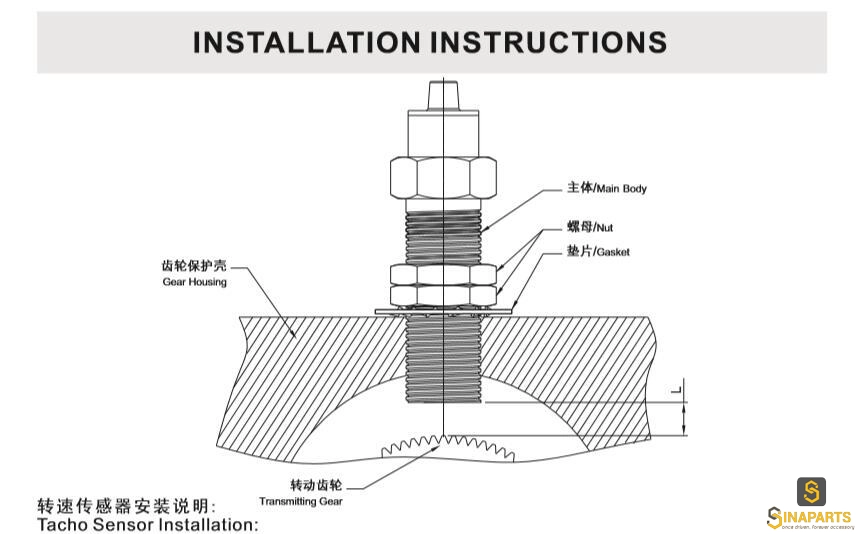

Be used for gear rotation speed measurement
Combining the advantages of stable signal, wide range of operating temperature, small size, simple assembly, etc.
It covers a wide range of measurement, and it is able tomeasure the zero rotation speed

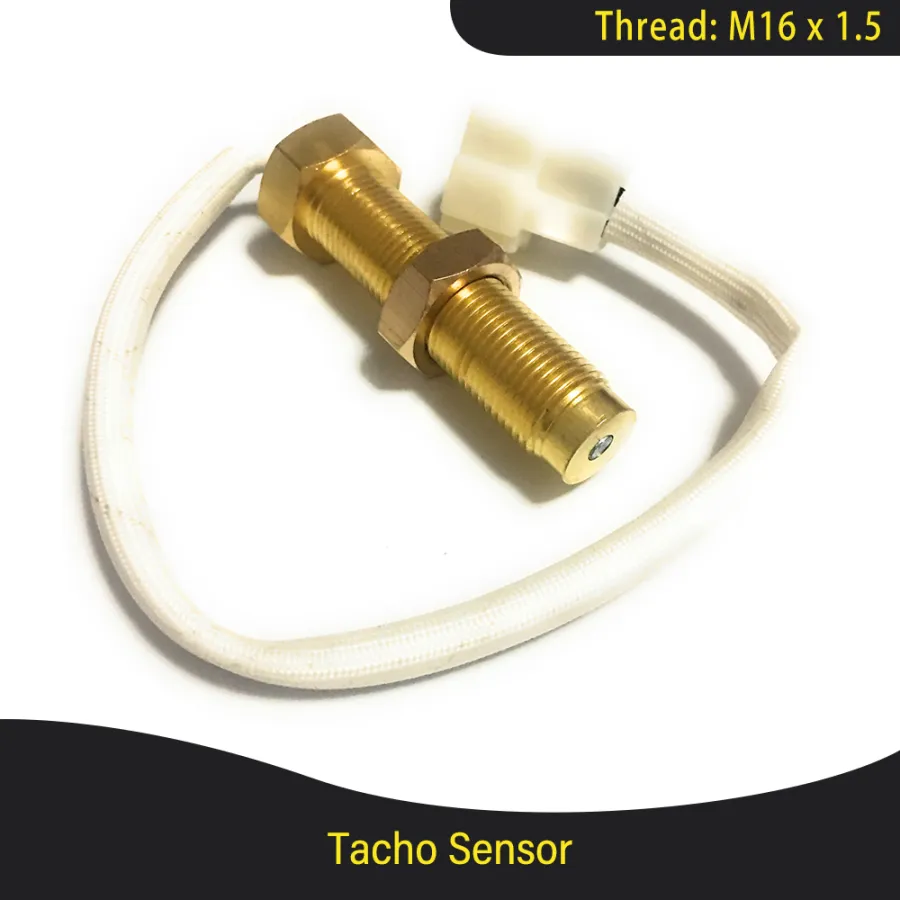

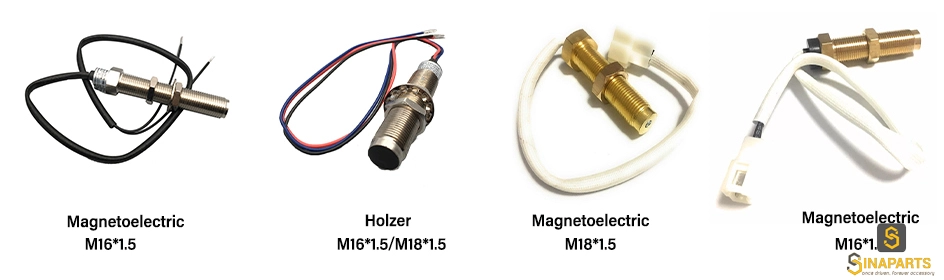

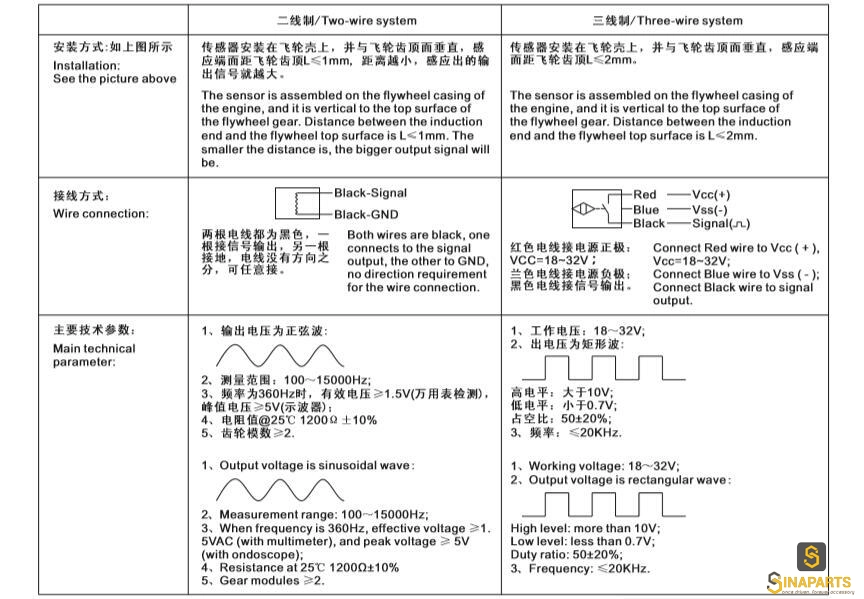

-M16*1.5 (2-wires)
Operating temperature: -40 ~85℃
Output signal: sine wave
Signal duty factor: 47±5%
Inductance distance: less than 1mm
Tooth module: 2~6
Connecting way: two wires
Protection rank: IP65
Length: L=100MM L1=80MM

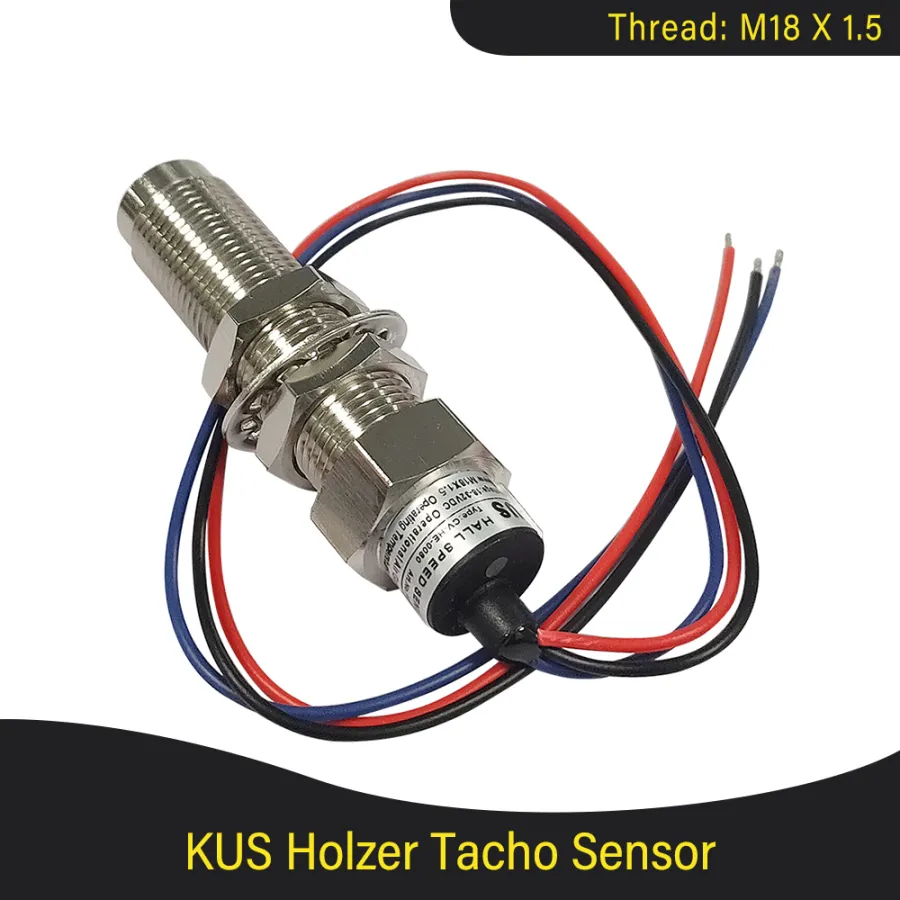

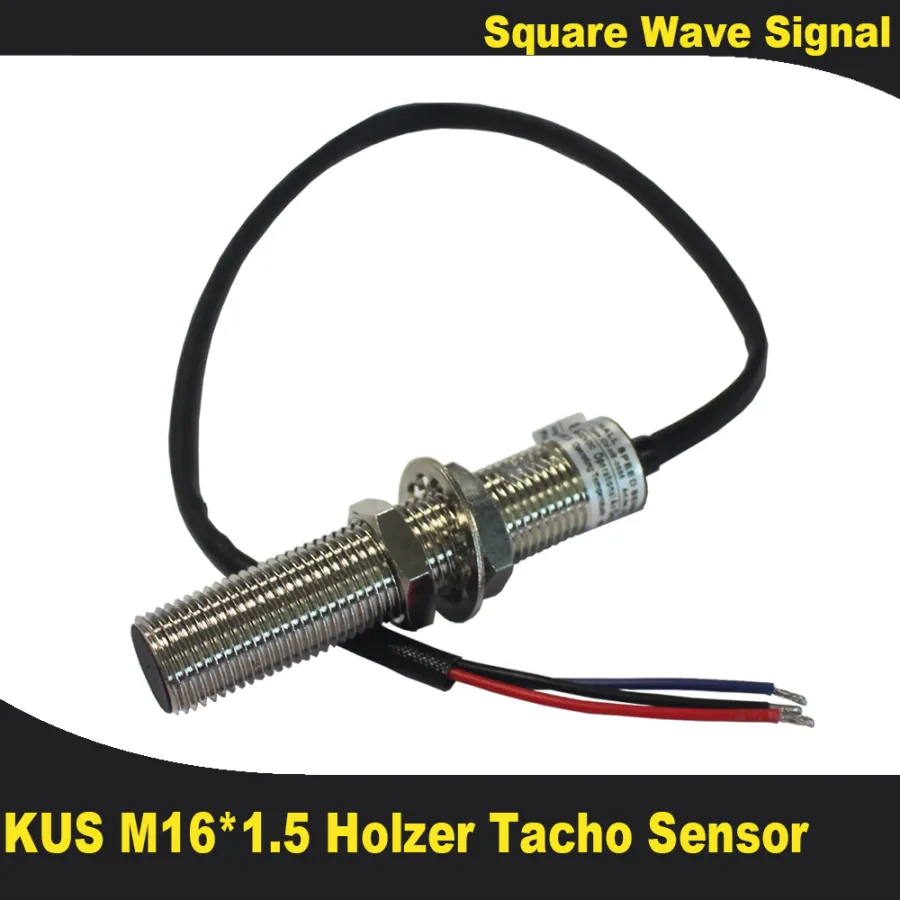

-M16*1.5/M18*1.5 Holzer Tacho (3-wires)
Operating temperature: -40 ~85℃
Output signal: square wave
Inductance distance: less than 2mm
Operating voltage: 8~32V with polarity protection
Connecting way: three wires
Protection rank: IP65
Length: L=80MM L1=70 / L=80MM L1=60MM

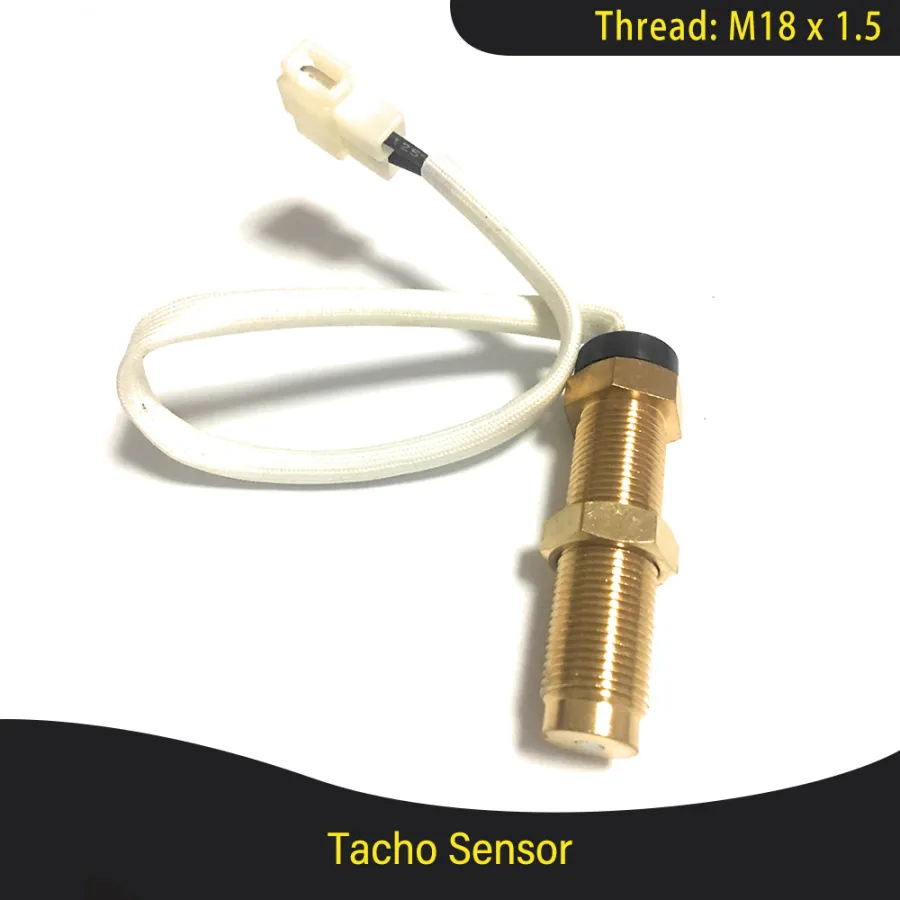

-M16*1.5 M18*1.5
Operating Temperature: -40 to 85℃
Output Signal: Sine Wave
Signal Duty Factor: 47±5%
Inductance Distance: Less than 1mm
Tooth Module: 2~6
Connecting Way: Two Terminals connection
Packaging Details
- Unit Type: piece
- Package Weight: 0.400
- Package Size: 10x10x15
- Brand Name: ELING
- Origin: Mainland China
- Manufacturer Part Number: KY
- Placement on Vehicle: front
- Material: stainless steel with plastic
- Item Length: 85mm
- Special Features: no
- Item Width: 85mm
- Country/Region of Manufacture: China
- Item Height: 55mm
- Interchange Part Number: 00
- Item Weight: 0.5kg

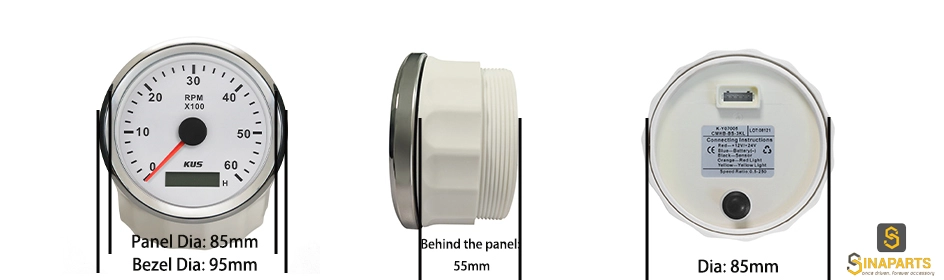

- Installation Dimension: 85mm
- Working Volt: 9-32V
- Package: White Box
- Warranty: one year
- Indicating Range: 0-3000RPM 0-4000RPM 0-6000 RPM 0-8000RPM
- Adjustable Speed Ratio: 0.5-250 for 0-3000RPM, 0-4000RPM, 0-6000RPM 1.0-10.0 for 0-8000RPM

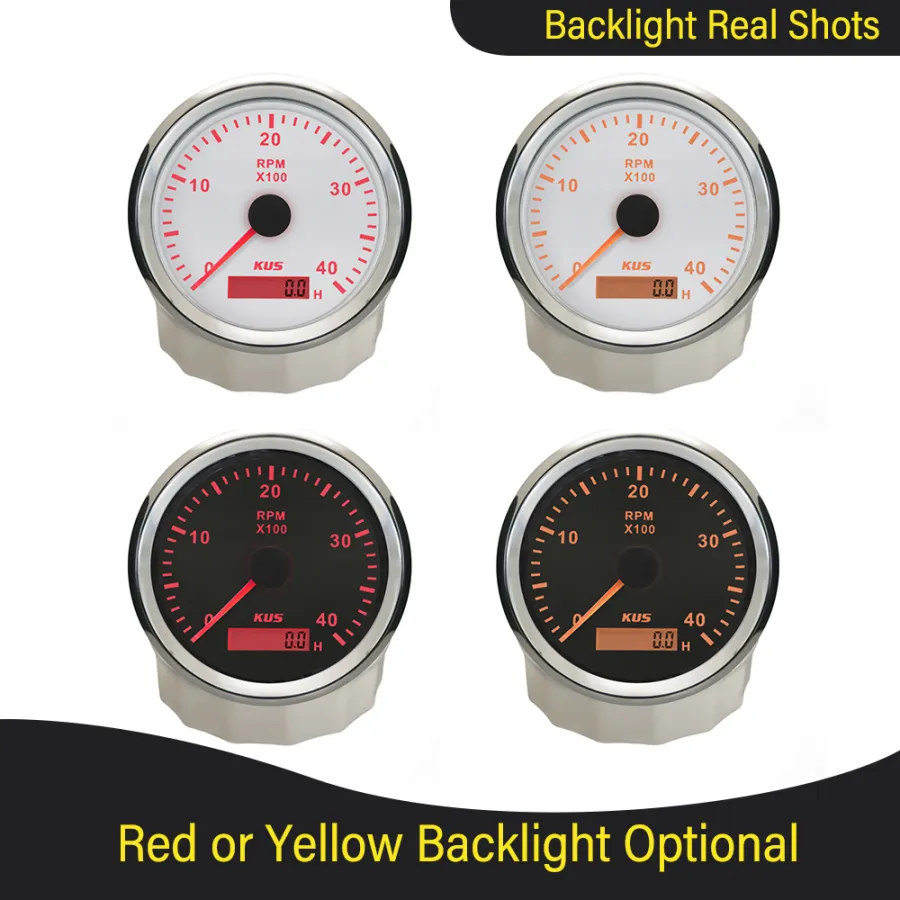

- Backlight: Red and Yellow
