OBDSTAR X300 DP Plus C Package Full Version Support ECU Programming and with P001 Programmer RFID for Toyota Smart Key

OBDSTAR X300 PAD2 X300 DP Plus C Package Full Version

1. OBDSTAR X300 PAD2 X300 DP Plus C Package Full Version:

2. Immobilizer+Mileage correction+Diagnosis+Special function (Oil rest +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag rest+TPMS+Steering angle rest+OBDII+DPF+Injector code+Supension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning)Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable+ for Toyota smarkt key Emulator)+others(Ignition coil+Remote tester

This device is a new Android-based vehicle trouble diagnostic device developed for internet applications. It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile
intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle.

Meanwhile, taking advantage of mobile internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc.

OBDSTAR X300 PAD2 X300 DP Plus C Package Full Version:

Immobilizer+Mileage correction+Diagnosis+Special function (Oil rest +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag rest+TPMS+Steering angle rest+OBDII+DPF+Injector code+Supension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning)Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable+for Toyota smarkt key Emulator)+others(Ignition coil+Remote tester)

OBDSTAR X300 PAD2 Functions:

 Reading DTCs
 Clear DTCs
 Read data stream etc.
 Immobilizer system (Including for Toyota Smart Key)
 Cluster calibrate
 OBDII
 EEPROM Adapter
 ABS
 Battery Matching
 CVT learning
 EPB
 Gear learnig
 TPMS(low tire) reset
 ECU programming
 Steering angle reset etc.

OBDSTAR X300 DP Plus Features:

1. Clone ECU
Clone ECU means copy ECU, that is the OBDSTAR X300 DP Plus copies the data from the original car ECU, then write it into another same ECU hardware, so that it can achieve the same function as the original ECU.
When you want to change the new ECU or the second ECU, if you use X300 DP Plus to clone via OBD, you won't need to go to the 4s store to do the online programming or dismantle ECU to weld, read & write.
ECU clone Pros :
No need to go to 4S shop, convenient, fast and save money.
Simplify the operating steps, even the amateur can also operate.
No need to dismantle and weld the ECU to read & write, it is zero risk to clone ECU via OBD with the X300 DP Plus.

2. Switch activation function
Nowadays, many car models' secondary power supply of the dashboard or audio equipment needs to be activated to enter the boot status through the related module CAN.
However, when the car technician maintains the dashboard / audio equipment, the main unit is out of the CANBUS network so it maybe won't boot. X300 DP plus " switch activation function" can emulate the CANBUS communication to active the power supply of dashboard / Audio so that it can enter the boot status, then it will test and verify the dashboard and the Audio, also the technician can save money avoiding to purchase many the boot platform and cables of kinds of car models.

3. Adds the "Help" function including the testable car models, update notice, special features, help instruction, wiring diagram etc.
Testable car models: The user can read the testable car models and year.
Update notice: The user can read all of the update content.
Features: The user can read all of the special features and the functions that only X300 DP Plus supports.
Help instruction: Built-in the guide and instruction for each car model or function.

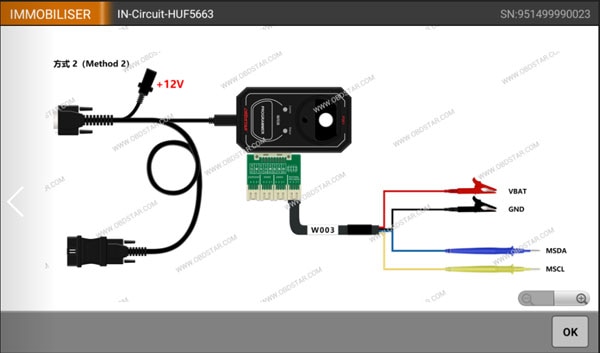

Wiring diagram: Built-in ECU wiring diagram, more intuitive and convenient.

4. Maintenance database: equipped with powerful database.
5. Video center: large amount of videos help users to operate device easily.
6. One Key Upgrade: built-in WIFI mode can realize application downloading and diagnostic function by one key upgrade.
7. System setting: set VCI formation, language, unit, data logging, user information etc.
8. Remote assistance: achieve remote assistance by this function.
9. Report center: record maintenance data logging and create reports during operation.
10. USB Inspection Camera (optional): Flexible and long pipe with HD camera, it can reach car interior pipeline or narrow space to have an overall inspection.

How to use OBDSTAR X300 DP Plus Induction Coil?

I. Functional Overview:
Induction Coil is used to detect the key induction coil failure of the vehicle.

II. Application Method:
Attach the Induction Coil to the key induction coil, and insert the key or turn ignition on, while Induction Coil red indicator lights up and goes out, indicating the key induction coil is good;the indicator does not illuminate to indicate the key coil is damaged, please check and repair or replace.

OBDSTAR X300 DP PAD2 Plus Software Update Instruction:

Tap "One Key Upgrade"  to enter one key upgrade page, as following picture shown:



Tap “One Key Upgrade” to start downloading, enter main interface after finishing downloading. (Notes: Ensure internet connection is normal when updating. Besides, because of many software, it may take several minutes, please wait patiently) If need to cancel a software, just tap corresponding Check Box as following picture shown:



OBDSTAR X300 PAD2 Plus Hardware Features:

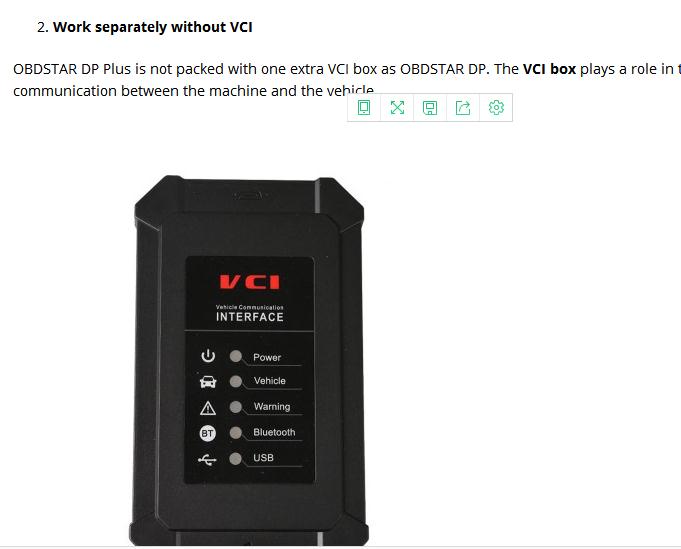

1. The built-in VCI box offers more stable communication.
2. The 8" touch screen offers better vision experience.
3. Allow the user to charge by the OBD port of car. Not like the X300 DP 7" Pad, which need to be 100% charged before use.
4. With specialized toolkit, high grade and practical.
5. Industrial -grade design, comes with the silicone sleeve
6. The back bracket allows the user to hang it on the steering wheel or stand on the table, which brings great convenience to the operator.
7. Comes with Toyota Lexus Emulators (The first 4 pieces are already released, and the 5th one is under development)

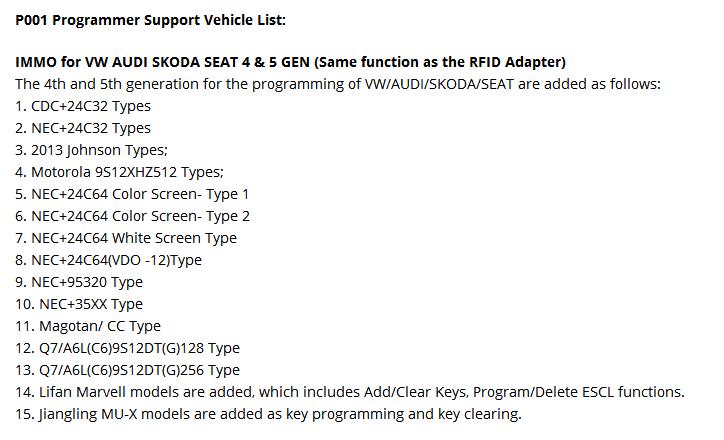

8. The following 3 adapters are integrated into the X300 PAD plus: EEPROM /PIC 2-in-1 adapter, RFID adapter (for VW/Audi 4th / 5th IMMO programming and other cars e.g Porsche, for BMW, Fiat etc.) and Renew Key PCF79XX adapter.
9. Adds the clip for reading SOP 8PIN EEPROM.
10. Adds the cables for reading ECU via OBD (Used to clone ECU and active the switch).

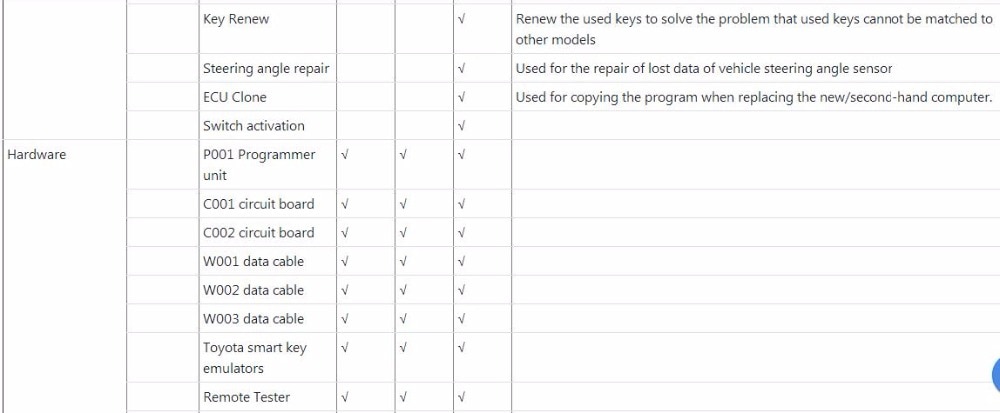

Different among OBDSTAR X300 DP Plus C Package (Full Version), A Package and B Package:

A Package Basic Version (SP326-C):
Immobilizer+Special function(EEPROM+Key Renewing)Adapter(P001 programmer+C001circuit board+C002 circuit board+W001 cable+W002 data cable+W003 data cable+Toyota smart key Emulator)+others(Ignition coil+Remote tester)

B Package (SP326-B):
Immobilizer+Special function(EEPROM+Key Renewing)+Mileage correction+Adapter(P001 programmer+C001 circuit board+C002  circuit board+W001 data cable+W002 data cable+W003 data cable+Toyota smarkt key Emulator)+others(Ignition coil+Remote tester)

C Package (SP326):

OBDSTAR X300 PAD2 X300 DP Plus C Package Full Version:

Immobilizer+Mileage correction+Diagnosis+Special function (Oil rest +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag rest+TPMS+Steering angle rest+OBDII+DPF+Injector code+Supension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning)Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable+for Toyota smarkt key Emulator)+others(Ignition coil+Remote tester)

OBDSTAR X300 DP Plus Technical Parameter:

OBDSTAR X300 DP Plus PAD 2 Package List:

Key Master DP Plus Unit
Main Wire
12V2A DC Charger
for KIA-20
OBD II-16 Connector
for HAIMA-17
for HONDA-3
for HYUNDAI/KIA-10
IMMO Induction Coil
Muti-functional Jumper
P001 Programmer Unit
C001/C002 Circuit Board
W001
W002
W003
RT100
for TOYOTA Simulation Smart Keys
Configuration List/Certificate/Quick Start Guide Fold

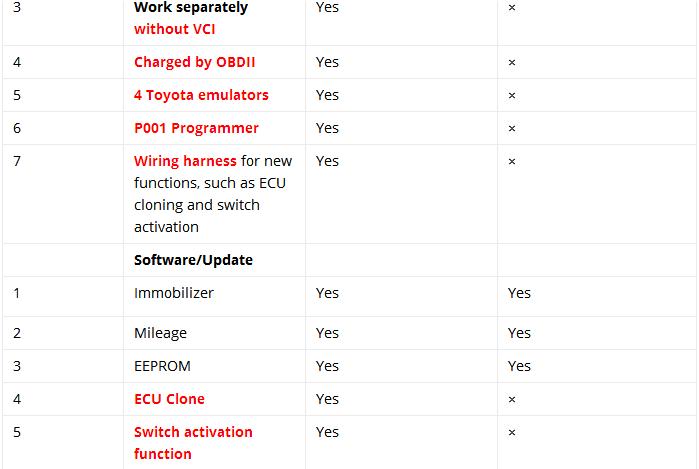

Why OBDSTAR X300 DP Plus is a good investment even expensive
