MUCAR CS2/CS4/CS6/CS90/CS99 Car Obd 2 Diagnostic Tools Lifetime Free Wifi Obd2 Scanner for Auto Programmer Code Reader Scanner

Why Do You Need Mucar CS Series Car Diagnostic Instrument?

★Display:5 inch MIPI LCD Screen

★Large Capacity:1G RAM+16G ROM

★System Diagnostic Function:2 to All System Diagnostic Lifetime Free

★Resets Service:3 to 28 Resets Lifetime Free

★OBDII Function:All 10 OBDII Lifetime Free

★Upgrade:WIFI Upgrade Lifetime Free

★Language:Russian,English,French,German,Italian,Spanish,Portuguese,Japanese,Polish,Hungarian,Arabic,Greek,Slovak

★Purchase Extra Resets Services:No Channel For Additional Purchase Of Resets

For Practical Use,Please Refer To This Video

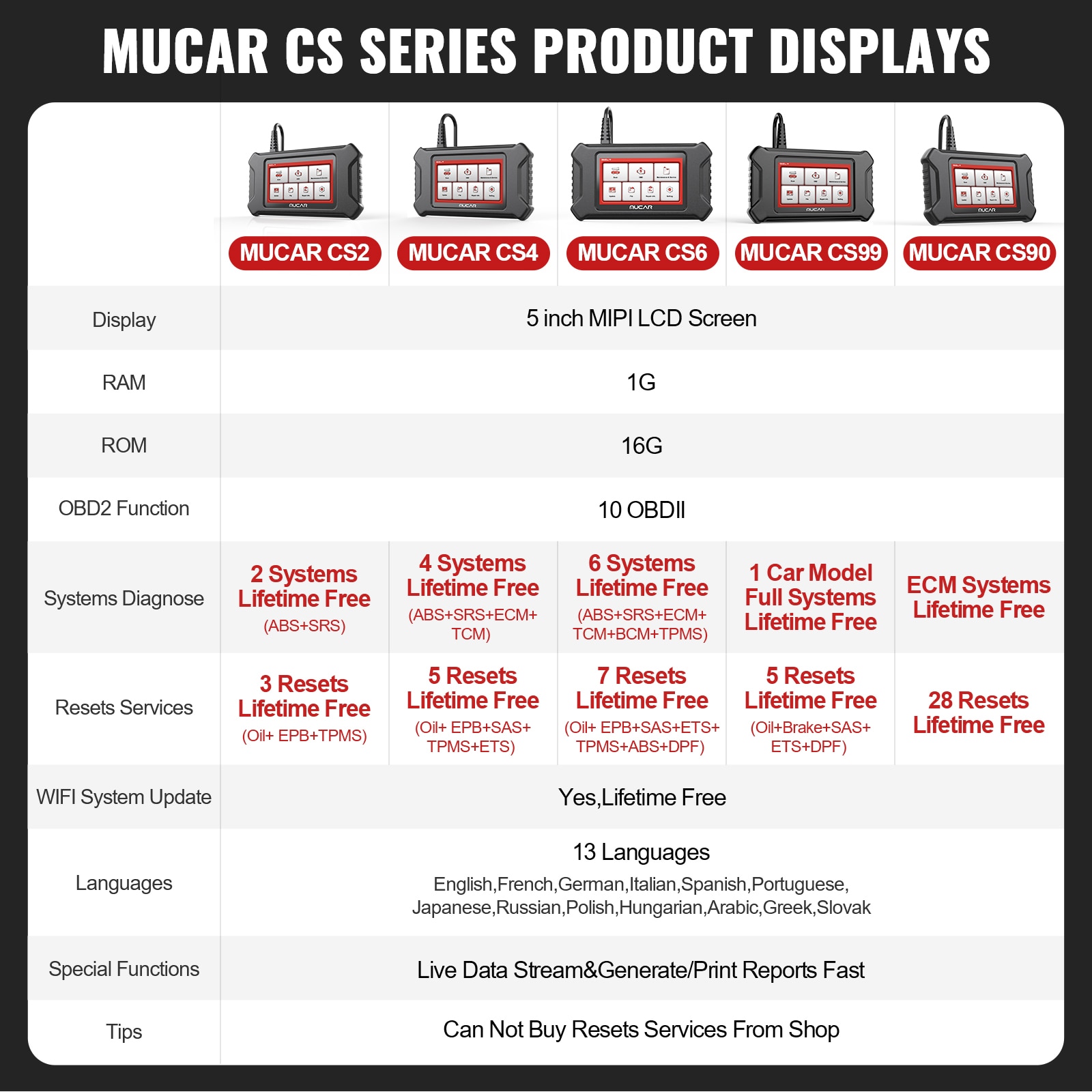

What Difference Between Mucar CS2/CS4/CS6/CS90/CS99?

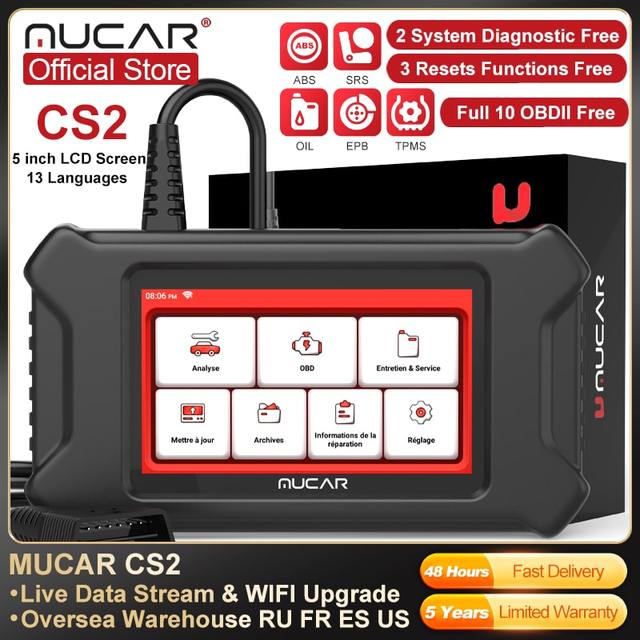

★Mucar CS2:Support ABS,SRS 2 Systems Diagnostic Lifetime Free;Oil,EPB,TPMS 3 Resets Services Lifetime Free

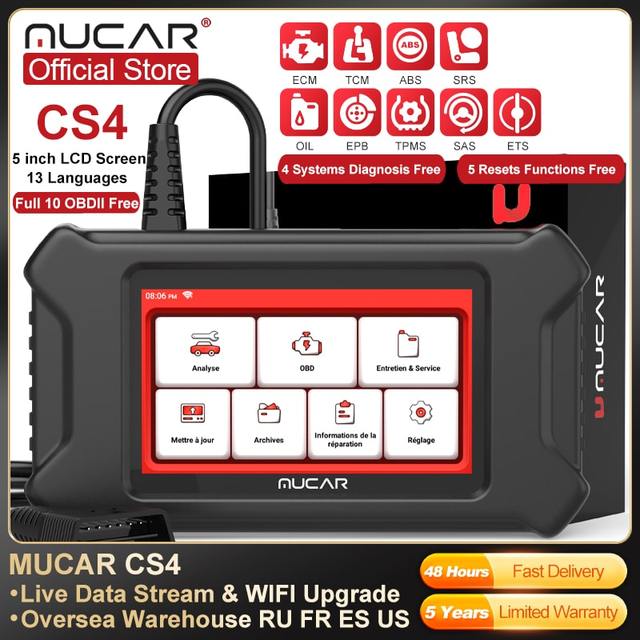

★Mucar CS4:Support ABS,SRS,ECM,TCM 4 Systems Diagnostic Lifetime Free;Oil,EPB,TPMS,SAS,ETS 5 Resets Services Lifetime Free

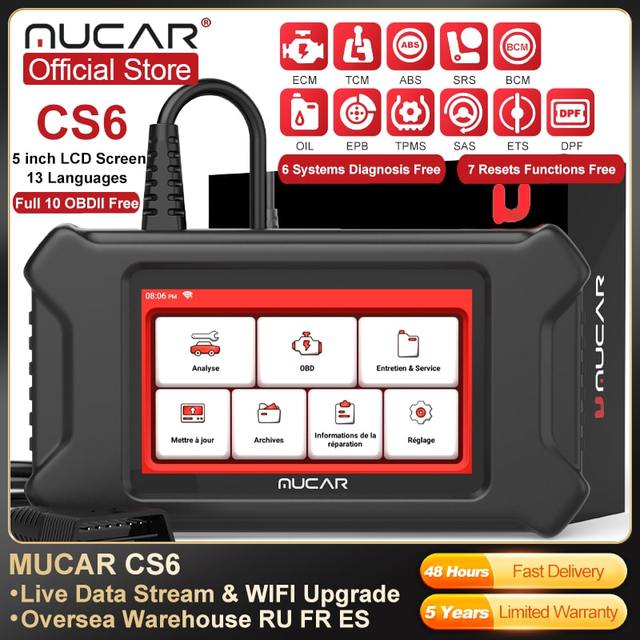

★Mucar CS6:Support ABS,SRS,ECM,TCM,BCM,TPMS 6 Systems Diagnostic Lifetime Free;Oil,EPB,TPMS,SAS,ETS,ABS,DPF 7 Resets Services Lifetime Free

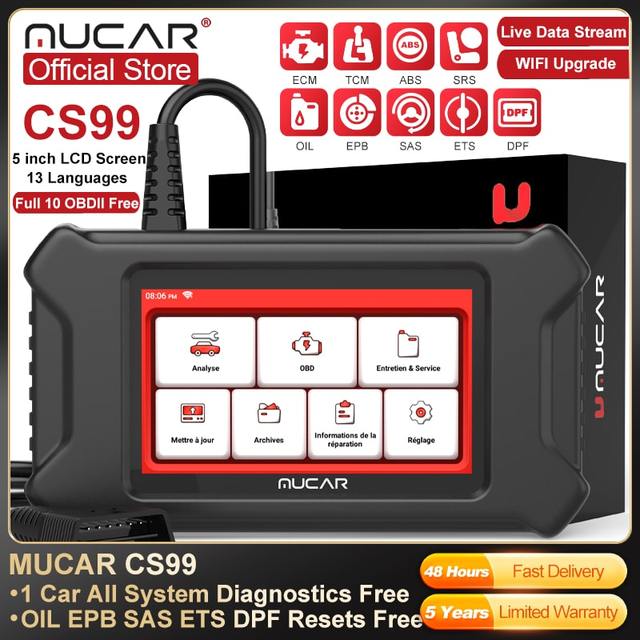

★Mucar CS99:Support 1Car Model All Systems Diagnostic Lifetime Free;Oil,EPB,SAS,ETS,DPF 5 Resets Services Lifetime Free

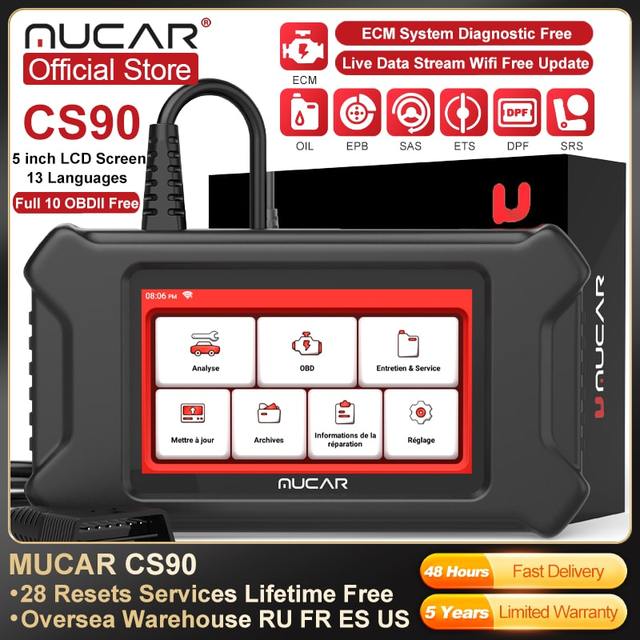

★Mucar CS90:Support ECM(Engine System) 1 Systems Diagnostic Lifetime Free;28 Resets Services Lifetime Free

6 System Diagnosis ABS,SRS,ECM,TCM,BCM,TPMS Lifetime Free Use and Update(Optional):

★ABS System:By accessing to ABS system to view its Live Data Stream,and retrieving the fault codes,this scanner can troubleshoot the ABS issue with a visual inspection of all brake components that caused the warning light,and turn the light off.

★SRS System:By detecting every electronic parameters in SRS system to check their health status,this diagnostic tool can address the SRS potential issues timely to ensure your driving safety, and turn off the warning light of Airbag.

★ECM System:You can diagnose the engine system via ecu obd2 port,support all 10 OBDII test modes,such as live data,O2 sensor test,component test and more;read and clear the engine error codes,find out the exactly problem,repair it,and turn off the MIL engine light.

★TCM System:By checking the Transmission system,this tool can figure the problem out via reading codes,or check the health status via live data viewing,and turn off the warning light,making sure that the right amount of power goes to the wheels to drive at a given speed.

★BCM System:The BCM system collects the above information and outputs the corresponding control output (lights,windows,wipers and cleaning,etc.),load failure detection

★TPMS System:Identify whether the ID information stored in the electronic control unit is consistent with the tire pressure sensor ID to achieve communication and ensure vehicle safety.

Professional Diagnostic Scanner for Car that Fits Your Needs-28 Maintenance Service Lifetime Free(Optional):

1.Oil Lamp Reset Service

To reset your oil service after changing the oil or simply resetting your vehicle inspection warning light(please make sure your vehicle is in good condition).The scanner helps you to reset the service lamps on the instrument cluster.

2.EPB Electronic Park Brake Reset

It is a technology that realizes parking brakes by electronic control.This OBD2 scanner is an essential tool required to release the rear electric parking brake unit when replacing rear pads or discs so that the caliper piston can be moved back.It can also clear codes and turn off the EPB light when it’s done.

3.TPMS Tire Pressure Monitoring System Reset

This function allows you to quickly look up the tire sensor IDs from the vehicle’s ECU,as well as to perform TPMS replacement and sensor test.

a)After the tire pressure MIL turns on and maintenance is performed,the tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL warning light.

b)Tire pressure resetting must be performed after maintenance performed in the following situations:

tire pressure is too low,tire leaks,tire pressure monitoring device is replaced or installed,tire is replaced,tire pressure sensor is damaged,or tire is replaced for the car with tire pressure monitoring function..

4.SAS Steering Angel Sensor Reset

To reset the steering angle,first find the relative zero point position for the car to drive in straight line.Taking this position as reference,the ECU can calculate the accurate angle for left and right steering.After replacing the steering angle position sensor,replacing steering mechanical parts(such as steering gearbox,steering column,end tie rod,steering knuckle),performing four-wheel alignment,or recovering car body,you must reset the steering angle.

5.Throttle Adaptation Reset

The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine.In an electronically fuel injected car,a throttle position sensor and air flow sensor communicate with the computer,which supplies the corresponding amount of fuel needed at the injectors.It must need re-learning throttle sensor position after clearing or repair.

6.ABS Bleeding Reset

When the ABS contain air,the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.If the ABS computer,ABS pump,brake master cylinder,brake cylinder,brake line,or brake fluid is replaced,the ABS bleeding function must be performed.

7.DPF Diesel Particulate Filter Reset

it is used to clear PM(Particulate Matter)from the DPF filter through continuous combustion oxidation mode(such us high temperature heating conbustion,fuel additive or catalyst reduce PM ignition conbustion)to stabilize the filter perfornance

DPF regeneration may be performed in the following cases:

a)The exhaust back pressure sensor is replaced

b)The PM trap is removed or replaced

c)The fuel additive nozzle is removed or replaced

d)The cataytic oxidizer is removed or replaced

e)The DPF regeneration MIL is on and maintenance is performed

f)The DPF regeneration control module is replaced

8.BAT Battery Service Reset

Evaluate the battery charge state,monitor the close-circuit current,register the battery replacement,and activate the rest state of the vehicle.Not all vehicles need to do the battery reset after changing batteries.

9.IMMO Key Programming Reset

The unique car key programming and read pin code function,it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

10.Sunroof Reset

The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

11.Suspension Reset

Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.

12.Gearbox(Transmission )Reset

Procedure Reset Transmission Adaptive Learning DIY.Start the car and drive.Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern.After you follow this programming method of the TCU/ECU drive the car.

13.AFS Headlamp Reset

'AFS' means Adaptive Front lighting System(at night with the Bi-Xenon headlights) it swivels either side,pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

14.Injector Coding

Leaking injectors and some dead injectors can be missed even when an injector is disabled.Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

15.Gear Learning

The scan tool monitors

certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

16.EGR Reset

This function can be used for EGR valve (exhaust gas recycled) cleaning or self-learning after replacement

17.A/F Reset

This function is applied to set or learn Air/Fuel ratio parameters.

18.Adblue Reset(Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up,urea reset operation is required.

19.Airbag Reset

This function resets the airbag data to clear the airbag collision fault indicator.When the vehicle collides and the airbag deploys,the corresponding fault code of the colision data appears,the airbag indicator lights up,and the fault code can't be cleared.Since the data inside the airbag computor is disposable,it is required that all new accessories must be ewplaced,but after performing this function,the data of the airbag computer can be recovered and the fault code can be cleared,the airbag light will go out,and the airbag computer can continue to use.

20.Coolant Bleeding

Use this function to activate the electronic water pump before venting the cooling system.

21.AT Learning

This function can complete the gearbox self-learning to improve gear shifting quality.When the gearbox is disassembled or repaired (after some of the car battery is powered off),it will lead to shift delay or impact problem. In this case,this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift

22.Language Change

This function is used to change the system language of the vehicle central control panel.

23.Nox Sensor Reset

Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust.lf the Nox fault is re-initialized and the Nox catalytic converter is replaced,it is necessary to reset the catalytic converter learned value stored in the engine Ecu.

24.Cluster Reset

a)Cluster reset is to copy,write,or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable,so that the odometer shows the actual mileage.

b)Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure,it

is necessary to do cluster reset after maintenance.

25.Stop/Start Reset

This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).

26.Seat Calibration

This function is applied to match the seats with memory function that are replaced and repaired.

27.Transport Mode

ln order to reduce power consumption,the following functions may be disabled,including limiting the vehicle speed,not waking up the door opening network,and disabling the remote control key,etc.At this time,the transport mode needs to be deactivated to restore the vehicle to normal.

28.Windows Calibration

This feature is designed to perform door window matching to recover ECU initial memory,and recover the automatic ascending and descending function of power window.

Support more than 94+ brands Vehicles:

For American car brand

Need standard obd2 and release year from 1996-now

For Ford(Australia),LINCOLN,BUICK,Chrysler,GM,FORD,CHRYSTER,CADILLAC,CHEVROLET,DODGE,FIAT(BRAZIL),GM(BRAZIL),Jeep,SGM,etc...

For European car brand

Need standard obd2 and release year from 2000-now

For AstonMartin,For Benz,For Sprinter,For BMW,For Ferrari,For Fiat,For LandRover,For Maserati,For Opel,For Peugeot,For Porsche,For Lancia,For LT3,For Maybach,For Mini,For Seat,For Skoda,For Vauxhall,For Volkswagen CV,For Renault,For Saab,For Smart,For Volvo,For Volkswagen,For Abarth,For Alfa,For Audi,For Bentley,For Bugatti,For Citroen,For Dacia,For Jaguar,For Lambor Ghini,etc...

For Asia car brand

Need standard obd2 and release year from 2008-now

For Acura,For Daewoo,For Daihatsu,For Honda,For Hyundai,For Infiniti,For Isuzu,For Kia,For Lexus,For Maruti Suzuki,For Mazda,For Mitsubishi,For Nissan,For SsangYong,For Subaru,For Suzuki,For Toyota,For GTR,For Scion,etc...

Please contact customer service for specific details

Support 13 Languages:

Russian,English,French,German,Italian,Spanish,Portuguese,Japanese,Polish,Hungarian,Arabic,Greek,Slovak

Free Full OBD2 Functions:

★Reset Check Engine Light

MUCAR CS enables you to clear the engine warning light, after completing the full obd2 diagnostics with ease. The main purpose of this tool is to:

1.Scan the engine systems;

2.Tell you about the nature of the issue;

3.Give an accurate reason why the engine check light is on;

4.Help to detect any potential problems;

5.Avoid excessive costs for unnecessary repairs.

6.The warning light does not turn off till you fix the issue.

★Read Codes:Read extensive current,pending and permanent codes in OBD system quickly

★Clean Codes:Clear detected fault codes and turn off the Check Engine Light efficiently

★Live Date:View graphical live data of vehicle's computer module(s) for easy analyses

★Freeze Frame:View the vehicle's operating parameters at the moment a DTC is detected

★I/M readiness:Read I/M readiness status to have a vehicle inspected for state emissions compliance

★O2 sensor test:Perform O2 sensor test to check fuel efficiency and vehicle emissions

★On-Borad Monitor Test:Read the results of on-board diagnostic monitoring tests for specific components/systems

★Car Information Display:Retrieve the vehicle information of VIN,CINs,and CVNs completely

★EVAP Test:Perform the component Test by allowing initiating a leak test for the vehicle's EVAP system

Characteristic Function:

1.One-Click WIFI Free Update Lifetime

1)Turn on the scanner

2)Connect to WIFI

3)Click the upgrade button on the home page to achieve one-click upgrade

2.Read Live Data Stream

2-in-1 live data from car code reader can be show in graph to make the data in your car system based on visualization,which helping you to analyze the abnormal parameter and help your problem more easy.

3.Dashboard Display+Auto-Test Battery Voltage:

After the car is ignited,once connected to the car DLC,the main interface of Mucar CS will have a small dashboard indicator to indicate that the connection is successful;and once connected,the OBDII Scanner will automatically diagnose the battery voltage

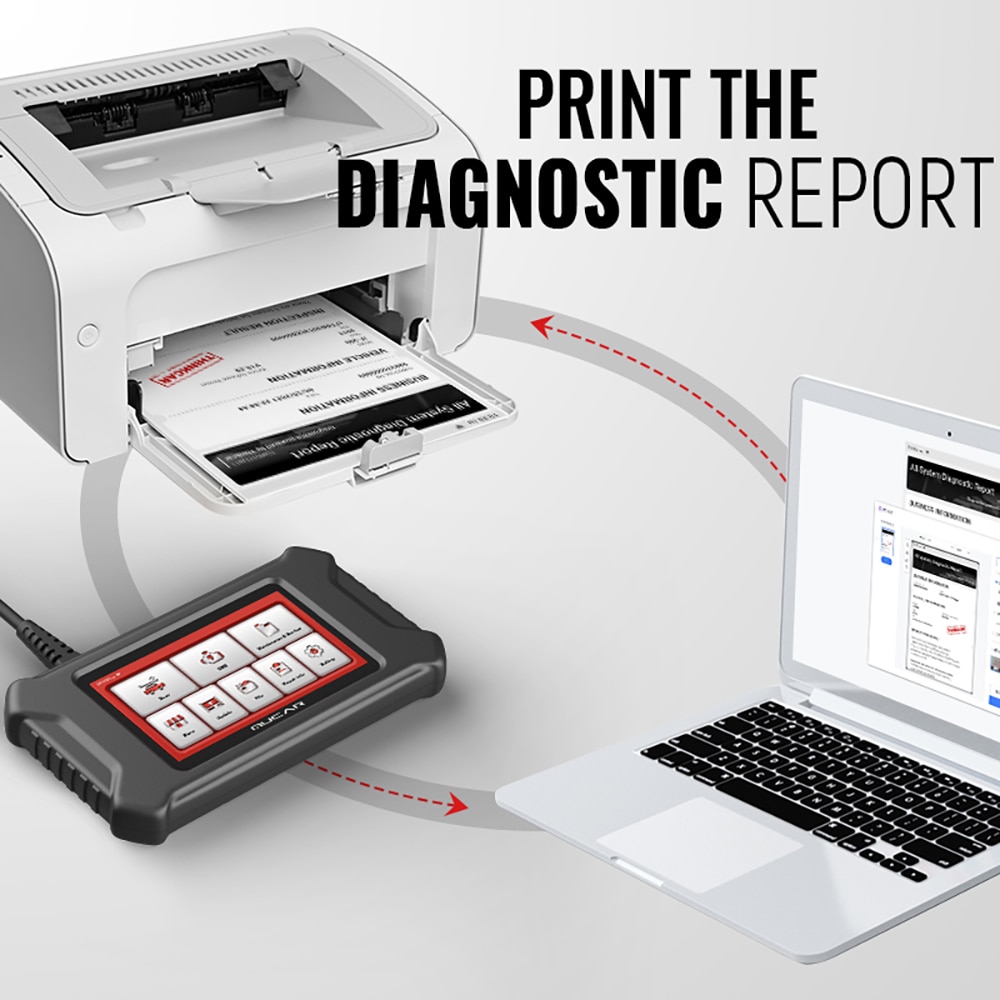

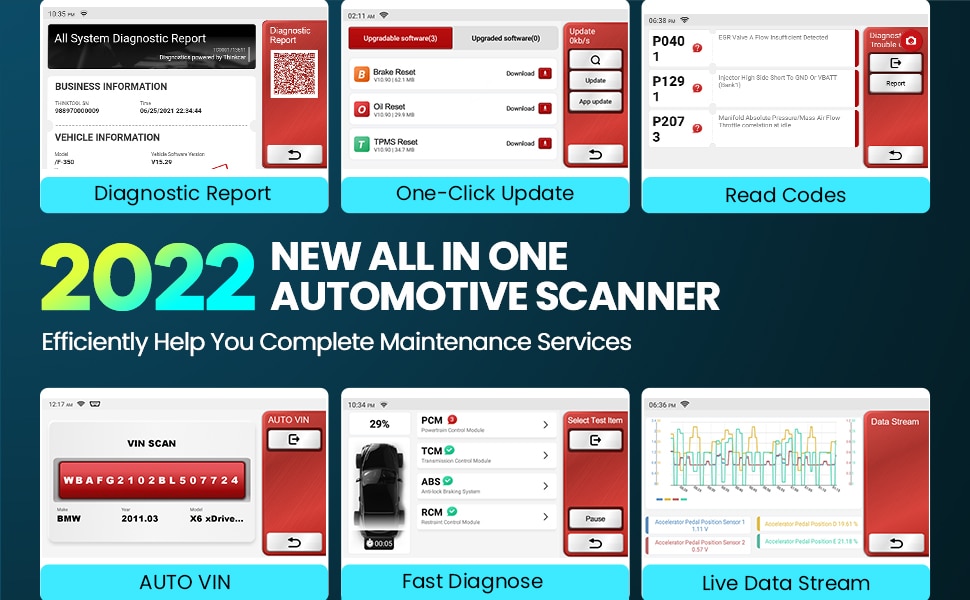

4.Generate a diagnostic report&Print vehicles diagnostic report

MUCAR CS support do a OBD vehicles diagnostic report,and print the vehicles report from PC it help you to understand car's problem.To make you know how to repair car.

How to Register/Update MUCAR CS:

1.Initial Use

2.Turn on the Machine

3.Language Setting

4.Connect WIFI

5.Choose Time Zone

6.User Agreement

7.Create an Account

8.Typing in Business Information

Product Parameters:

CPU:MT6580 CORTEX-A7 1.3GHz/4Core

Memory:1GB DDR3/16GB EMMC

Display:5 Inch/480*854 MIPI LCD Display Screen

TP:GT911 GFF

WIFI:802.11b/g/n 2.4GHz

USB:TYPE-C*1

TF Card:Support SDHC High Speed Card

Battery:3.7V/600mAH Lithium Polymer

Power Input:OBD 12V input or TYPE C 5V input

Size:22x12.2x2.5cm

Packing List:

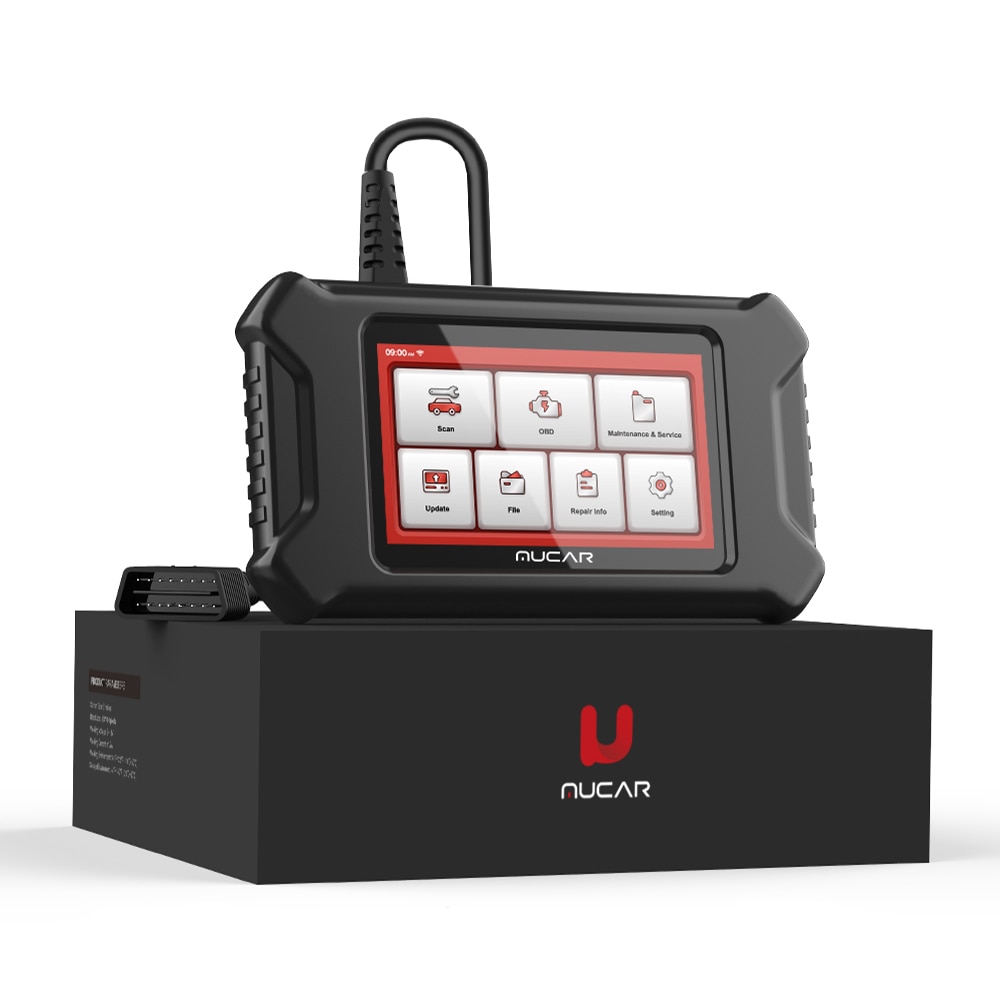

1xMucar CS2/CS4/CS6/CS90/CS99 Host

1xManual
