ELM327 Wifi/BT V1.5 PIC18F25K80 Chip obd2 scanner OBDII code reader For Android IOS car diagnostic tool PK ICAR 2

High Quality ELM327 V1.5 Bluetooth /WIFI For options OBD2 Car Diagnostic Tool with PIC18f25K80 Chip Supports ATAL ATPPS OVER 500,0000 Car owners,DIYers's First Choice

Notices:ELM327 V1.5 CHIP PIC18F25K80

7 Type ELM327 V1.5 (different size and covers,same functions)

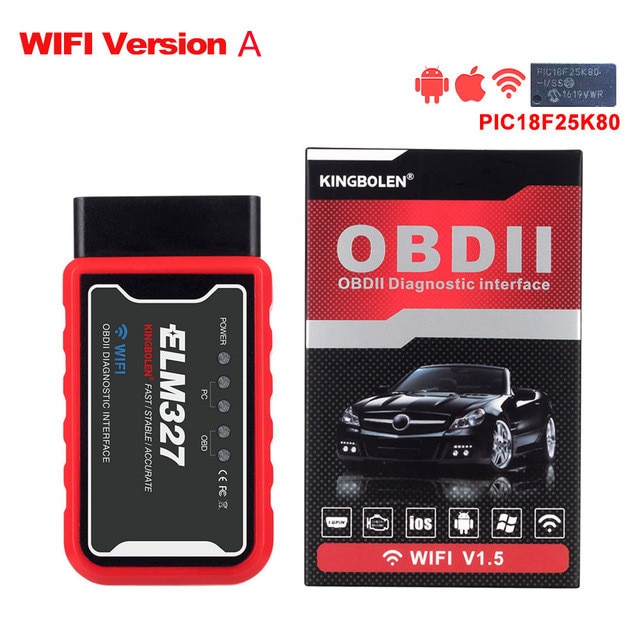

ELM327 WIFI A

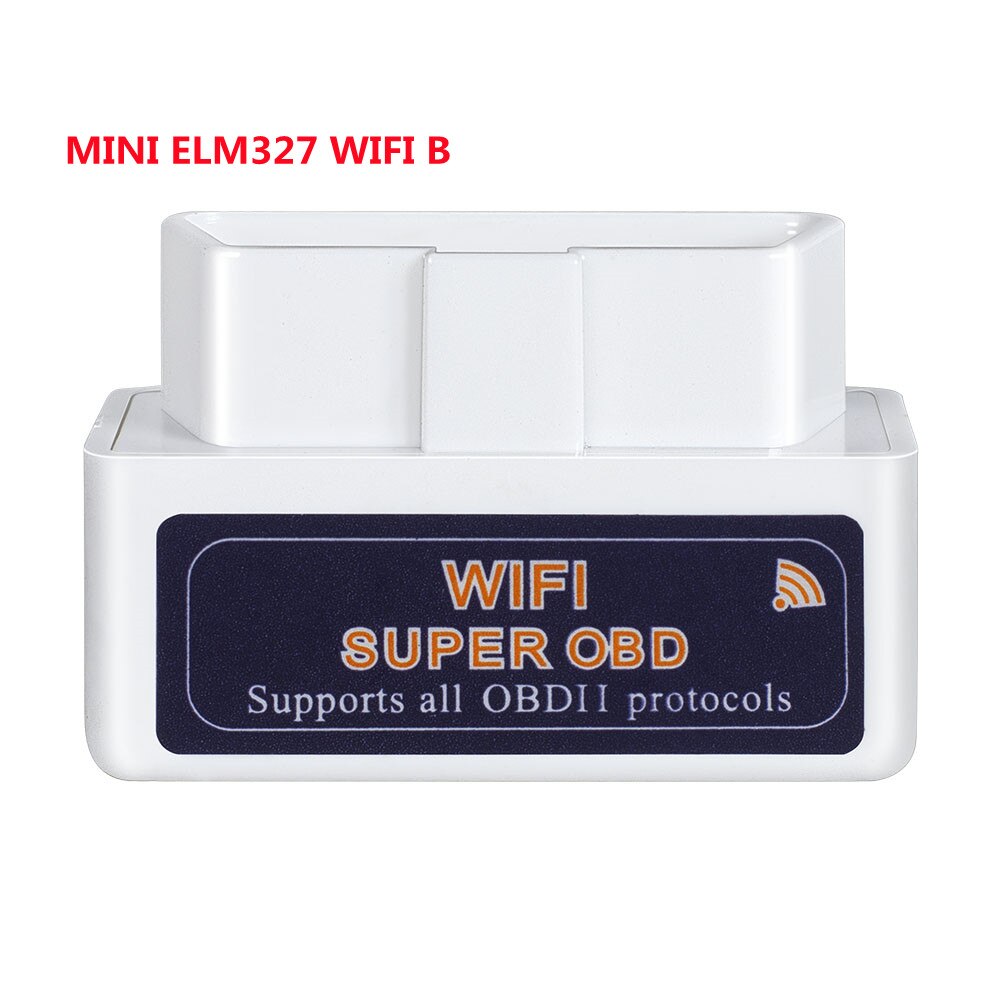

ELM327 WIFI B

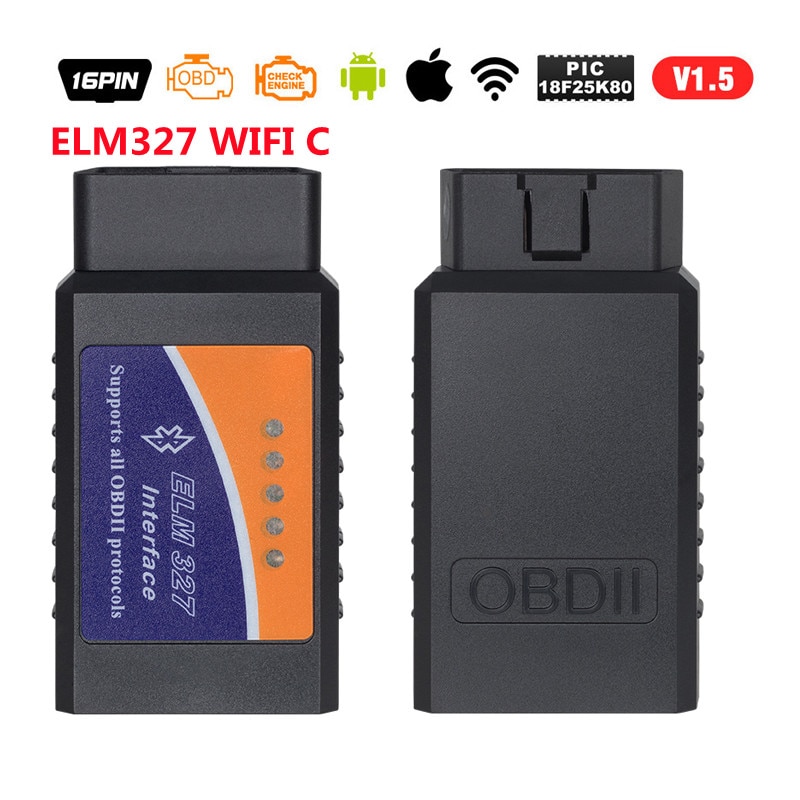

ELM327 WIFI C

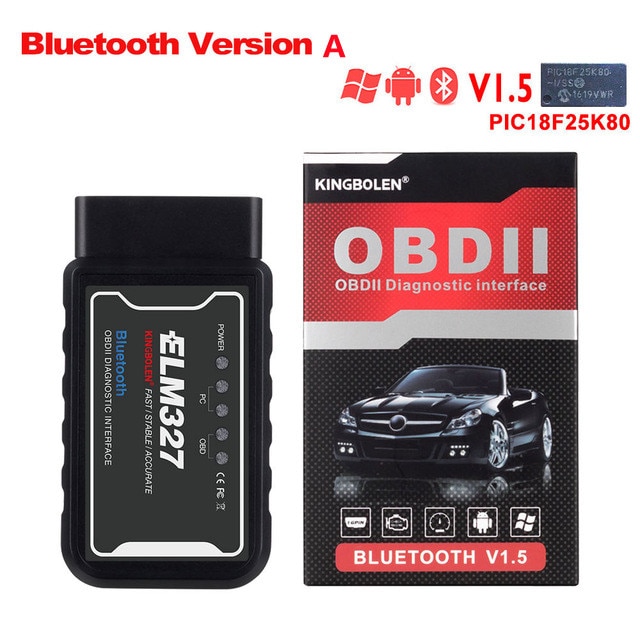

ELM327 Bluetooth A

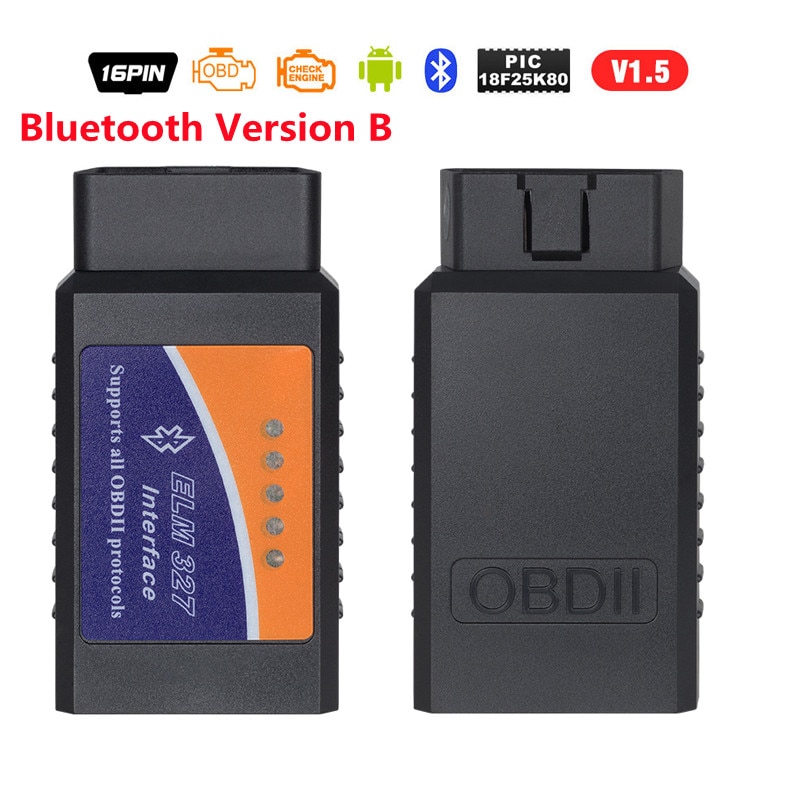

ELM327 Bluetooth B

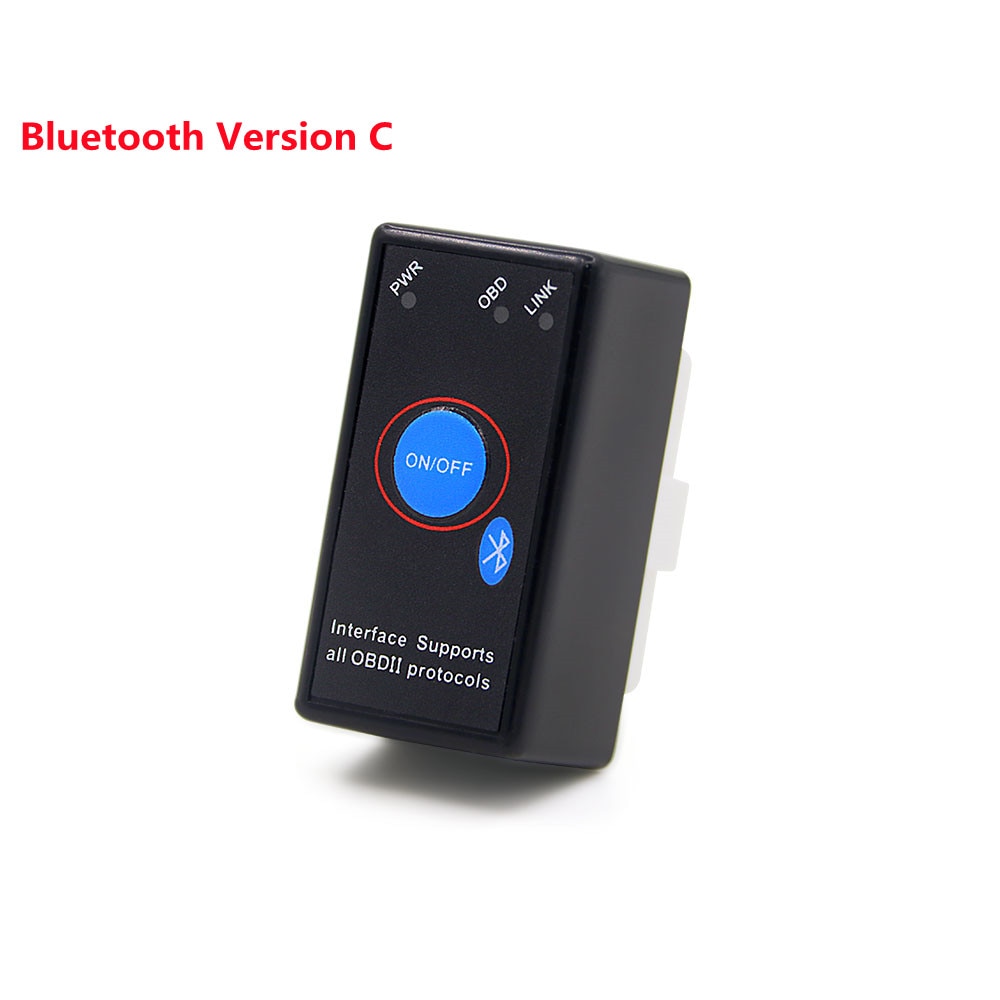

ELM327 Bluetooth C

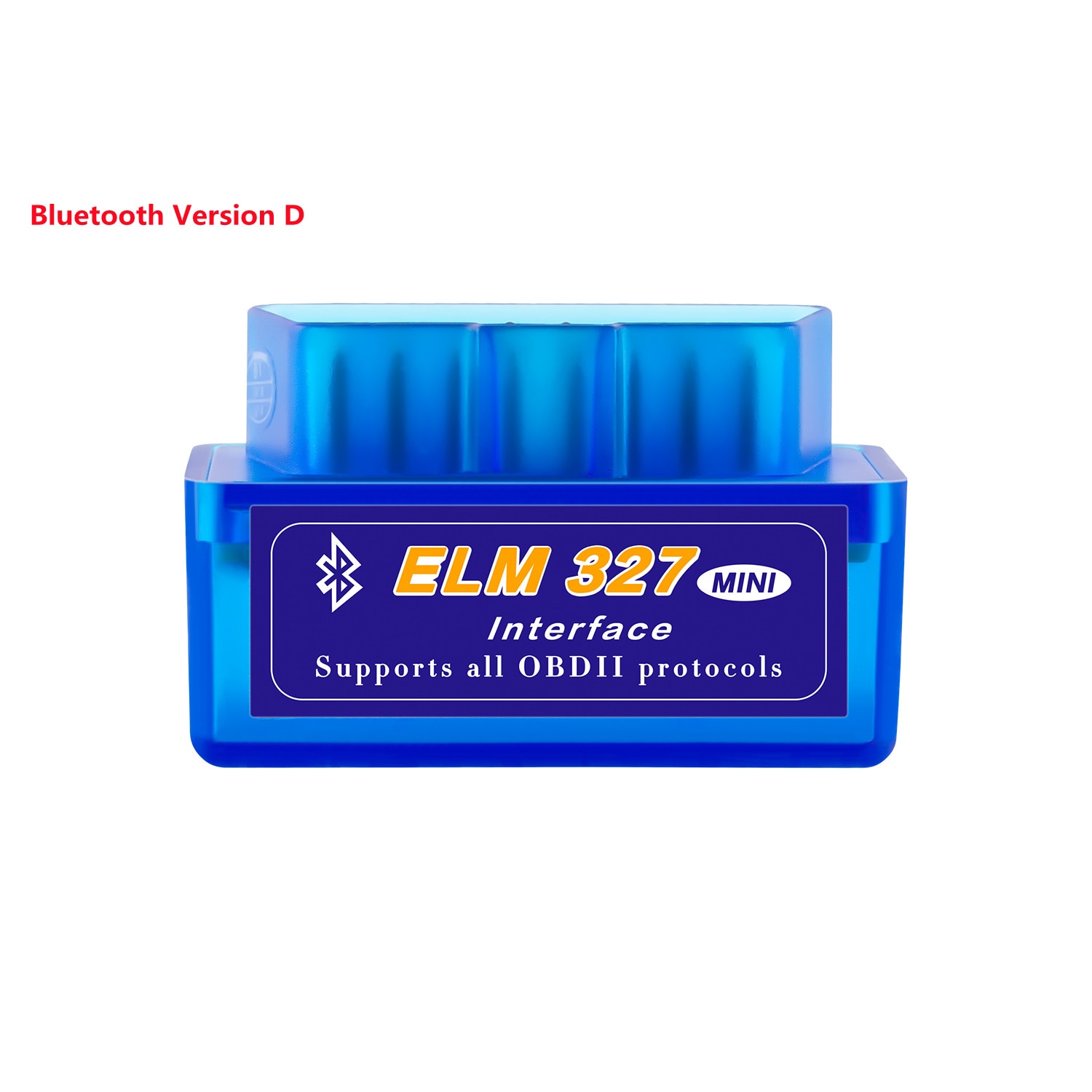

ELM327 Bluetooth D

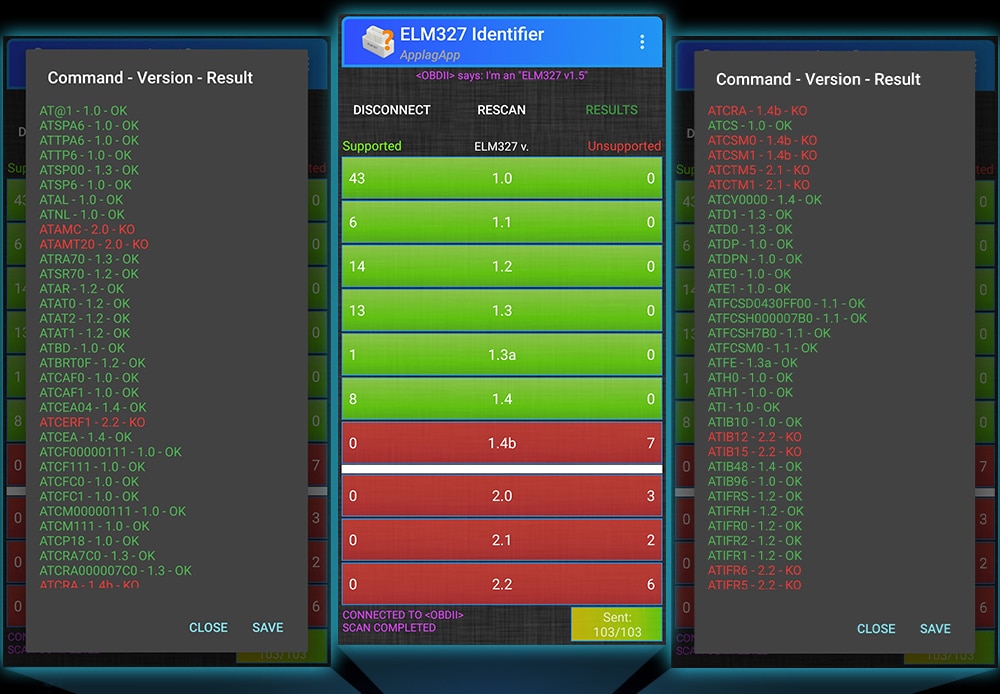

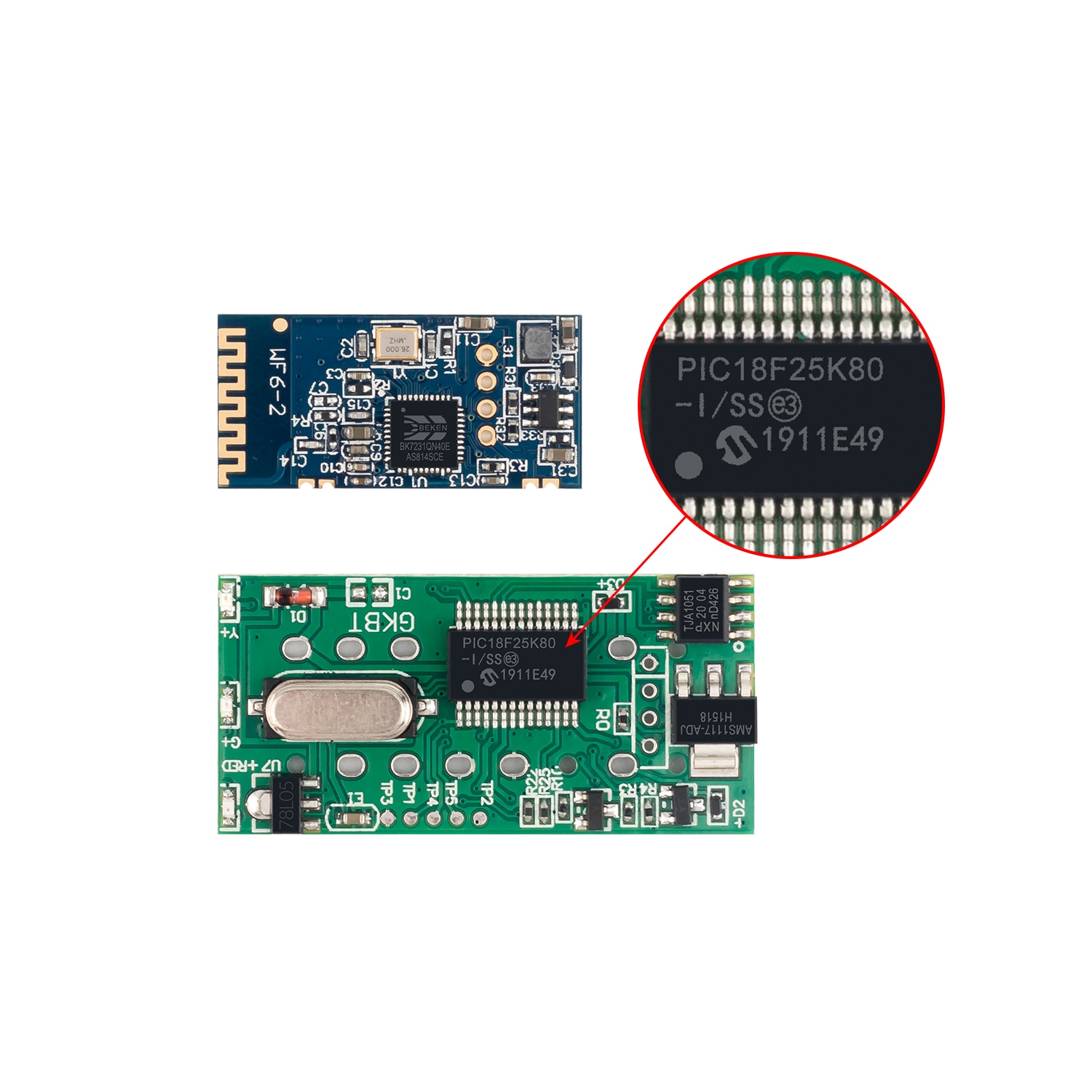

ALL ELM327 are V 1.5 Version, 1 PCB board ,with PIC18F25K80 Chip. Supports ATAL ATPPS

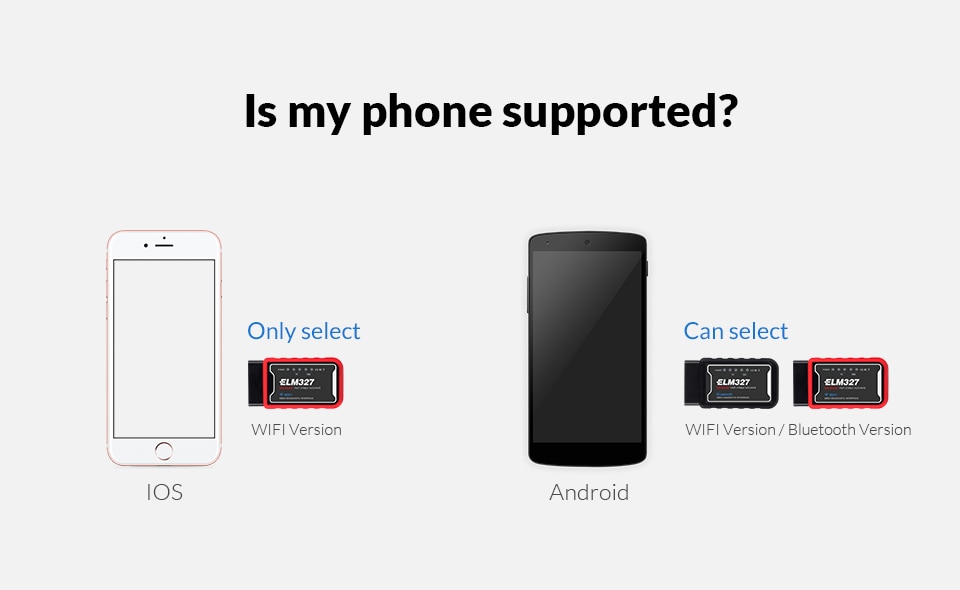

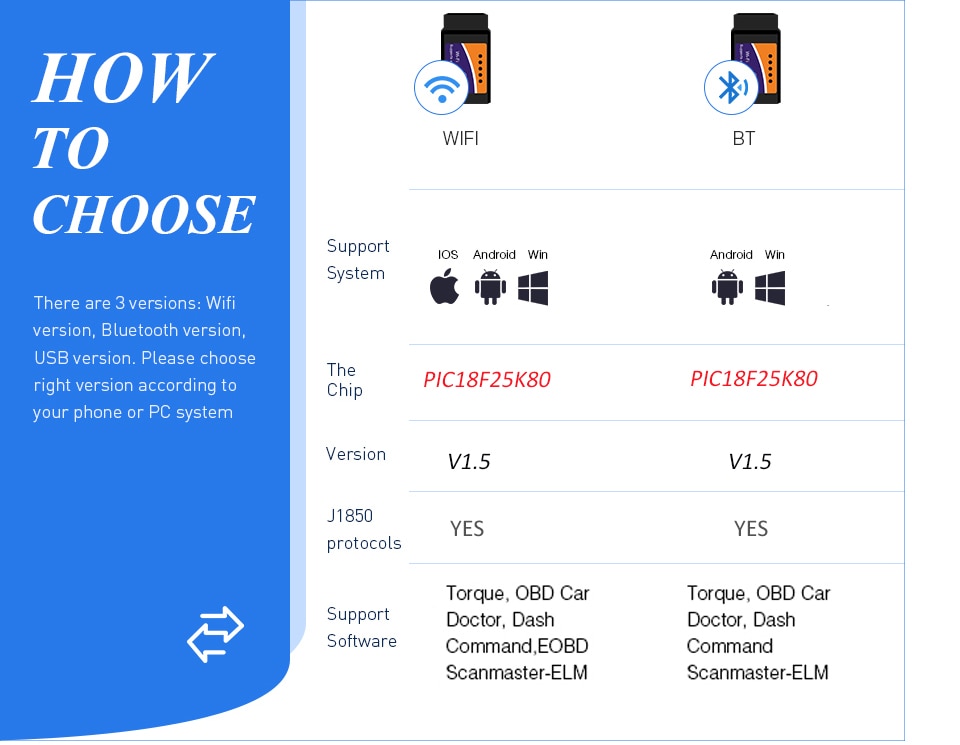

Hardware requirements:

for Android/for IOS devices(iphone,ipad e.g.)//for PC ----Bluetooth elm327supportsandroid system only, does not support IOS system, so if you have a iphone, please buy wifi bluetooth ELM327. -----Wifi elm327supports bothandroid and IOS system.

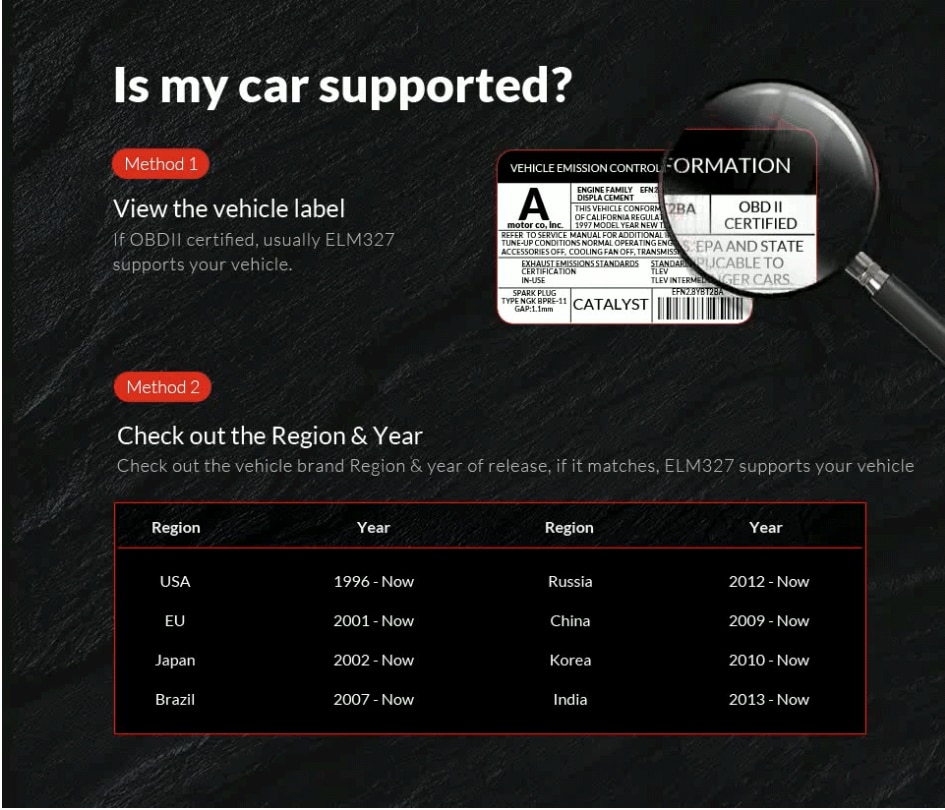

Support OBD 2 protocols car :

1.USA cars after1998 r, such as for Chrysler ,Fit for Ford ,Fit for GM ,Fit for Jeep........
2.EU cars after2000 r, such as for Alfa Romeo ,Fit for SAAB ,Fit for Acura ...........
3.Japan & Korea cars after2002 r. such as Fit for KIA ,Fit for Isuzu ,Fit for Honda ,Fit for Mitsubishi,..........
4.China cars after2005 r.
5. RUSSIAN CAR after2011 year.

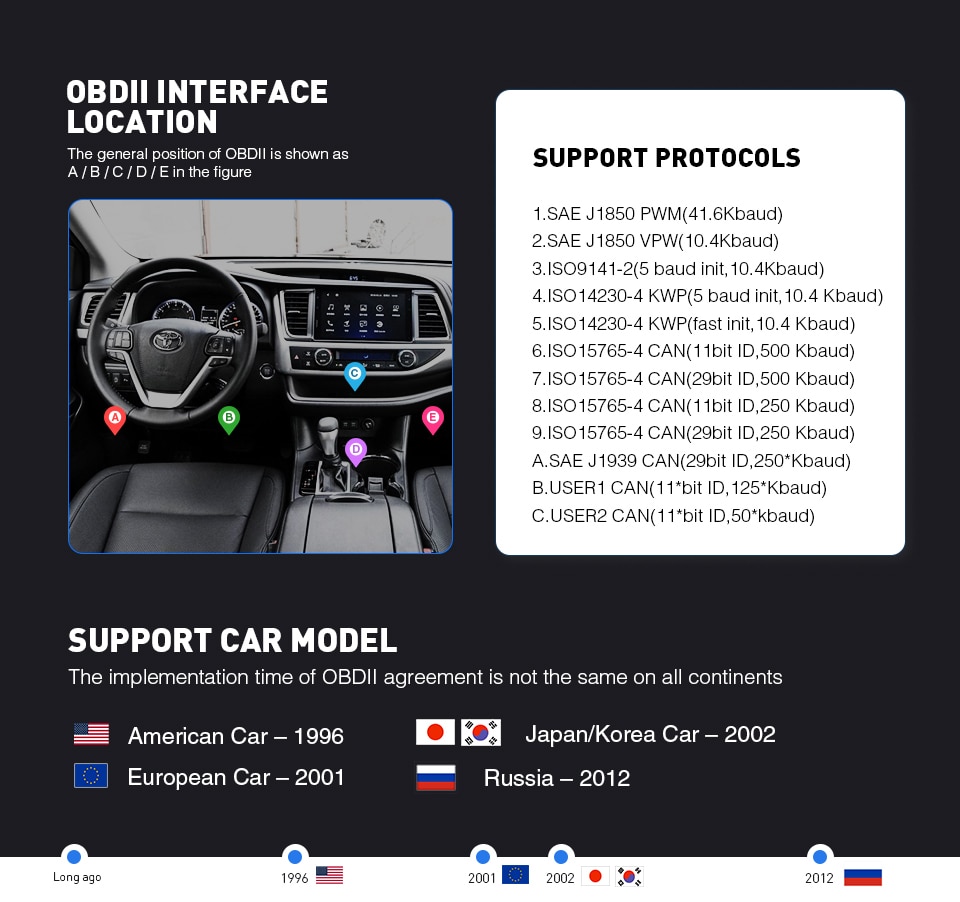

Support Protocols:

1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)

Features Of ELM327 V1.5 Bluetooth or WIFI For options OBDII Car Diagnostic Tool

1. Bluetooth version ELM327 password :1234 or 0000 . WIFI Version ELM327 NO password.

2.BT ELM327--------Android phone working
WIFI ELM327------IOS&Android phone working

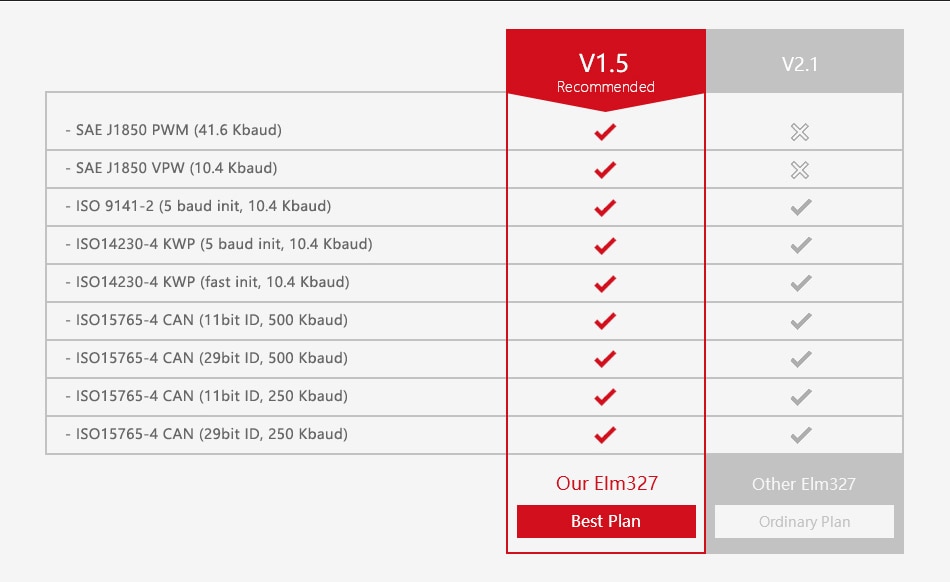

WHY Choose V1.5 ELM327？ V1.5 Better than V 2.1

1.V 1.5 ELM327 Works with 9 protocols, including SAE-J1850 PWM , JAE J1850 VPW , V2.1 can not work.

2. V1.5 ELM327 is more stable than V2.1

3.V1.5 is More Advanced ELM327 Version

Packing List:

• ELM327 OBD II Device

•Software Scan QR CODE on the parcel

Software Requirements:

All ELM327 based software.
-IOS systemsoftware in Apple store:Car Scanner / OBD Auto Doctor / OBD Car Doctor / EOBD Faciles / Rev / FUZZYCar/ DashComand / SpeedPORT / Nova Scan...
Attention:For iOS base software are not included you must buy from Apple App Store!
-Android systemsoftware：Torque pro/ Mini OBD2 / OBD Car Doctor / DashComand ...
-Windows system:Scanmaster-ELM / PCMSCAN...

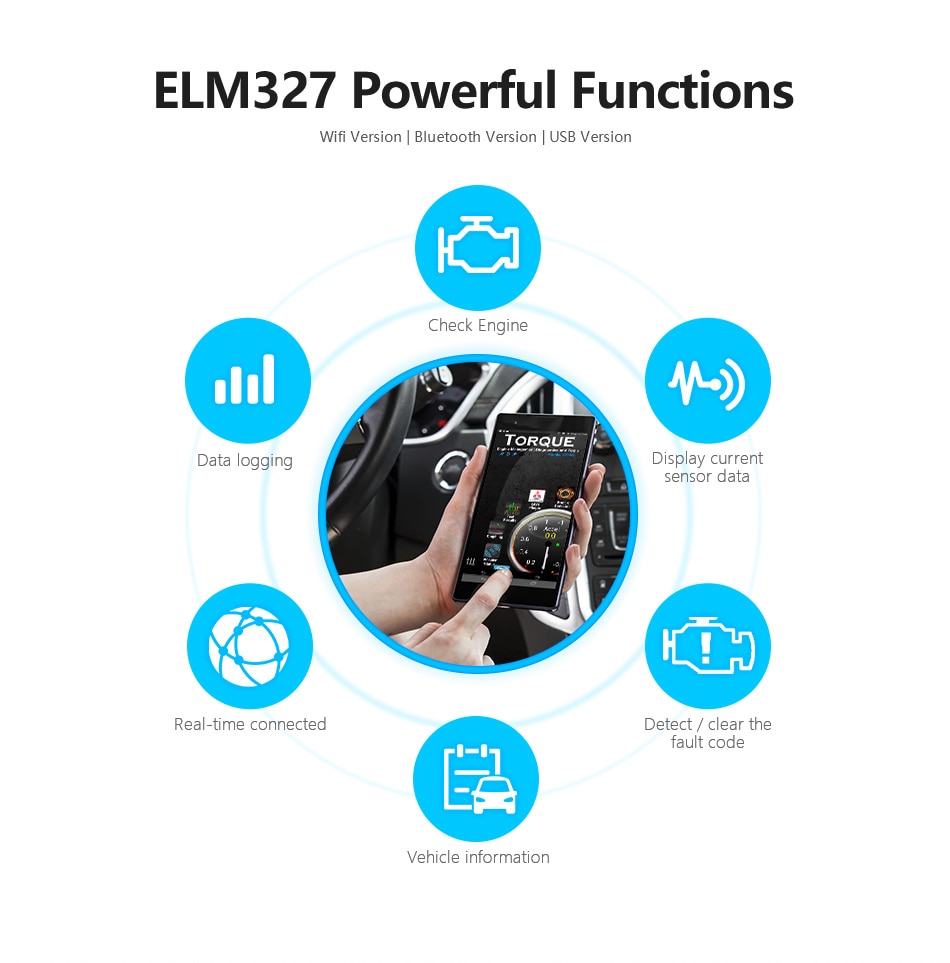

ELM327 V1.5 OBD2 Scanner support Functions List:

1.Engine RPM
2.Calculated Load Value
3.Coolant Temperature
4.Fuel System Status
5.Vehicle Speed
6.Short Term Fuel Trim
7.Long Term Fuel Trim
8.Intake Manifold Pressure
9.Timing Advance
10.Intake Air Temperature
11.Air Flow Rate
12.Absolute Throttle Position
13.Oxygen sensor voltages/associated short term fuel trims
14.Fuel System status
15.Fuel Pressure

ELM327 V1.5 can read Standard OBD2 Protocols:

1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)

ELM327 V 1.5 Key Features:

Wireless scanning for tool, support all OBD2 protocols
Compatible with most OBD II compliant vehicles
3000 code definition database
Read diagnostic trouble codes
16-pin socket adaptor for Bluetooth interface
Built-in indicator lights

How to get the suitable APP software ?

pls Scan QR CODE here ,and then pls choose the right app for your phone system

HOW To connect the phone and use the ELM327 ?

A: On android phone :

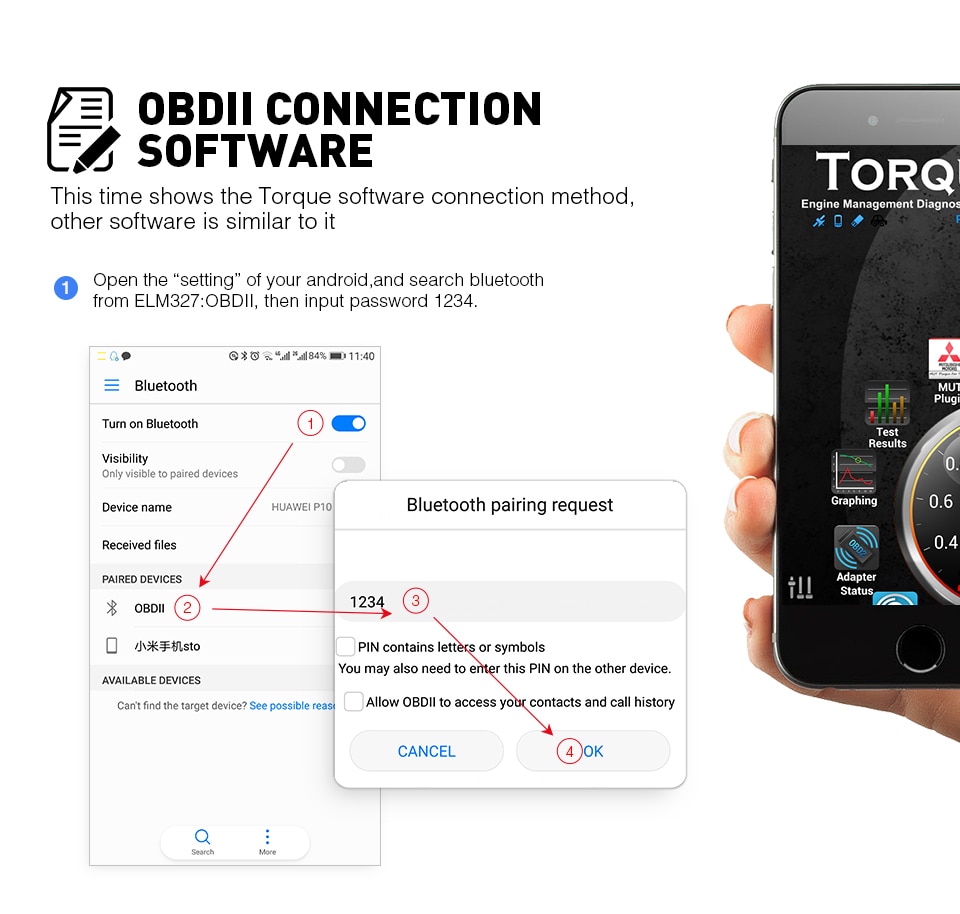

1. Open the "setting" of your android,and search bluetoothfrom ELM327:OBDll, then input password 1234.

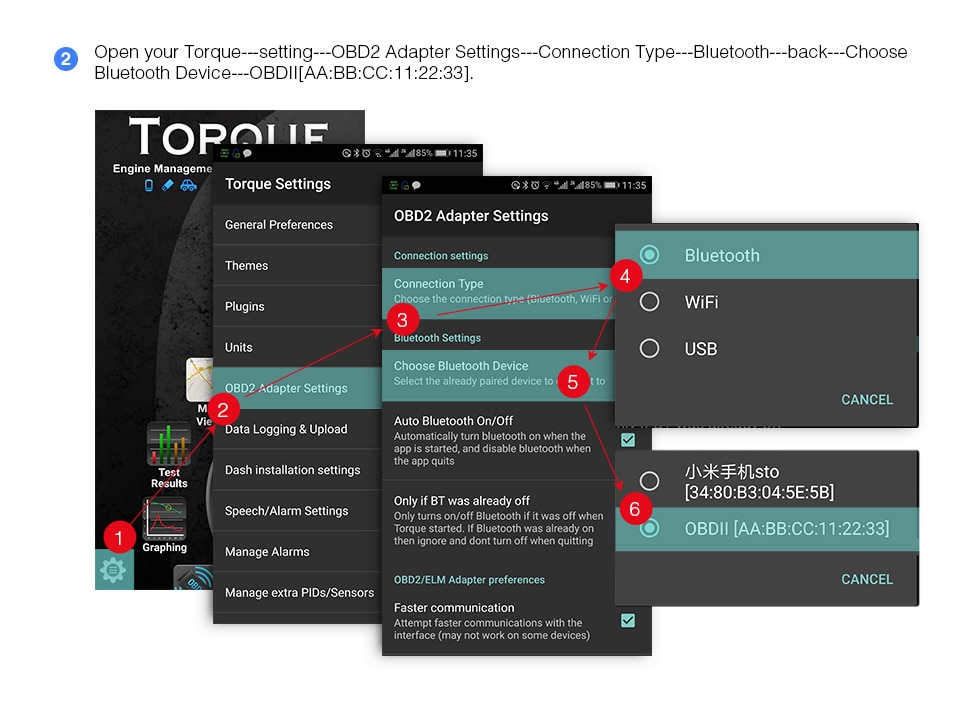

2. Open your Torque--etting---OBD2 Adapter Settins---Connection Type---Bluetooth---back---Choose
Bluetooth Device---OBDII[AA:BB:CC:11:22:33].

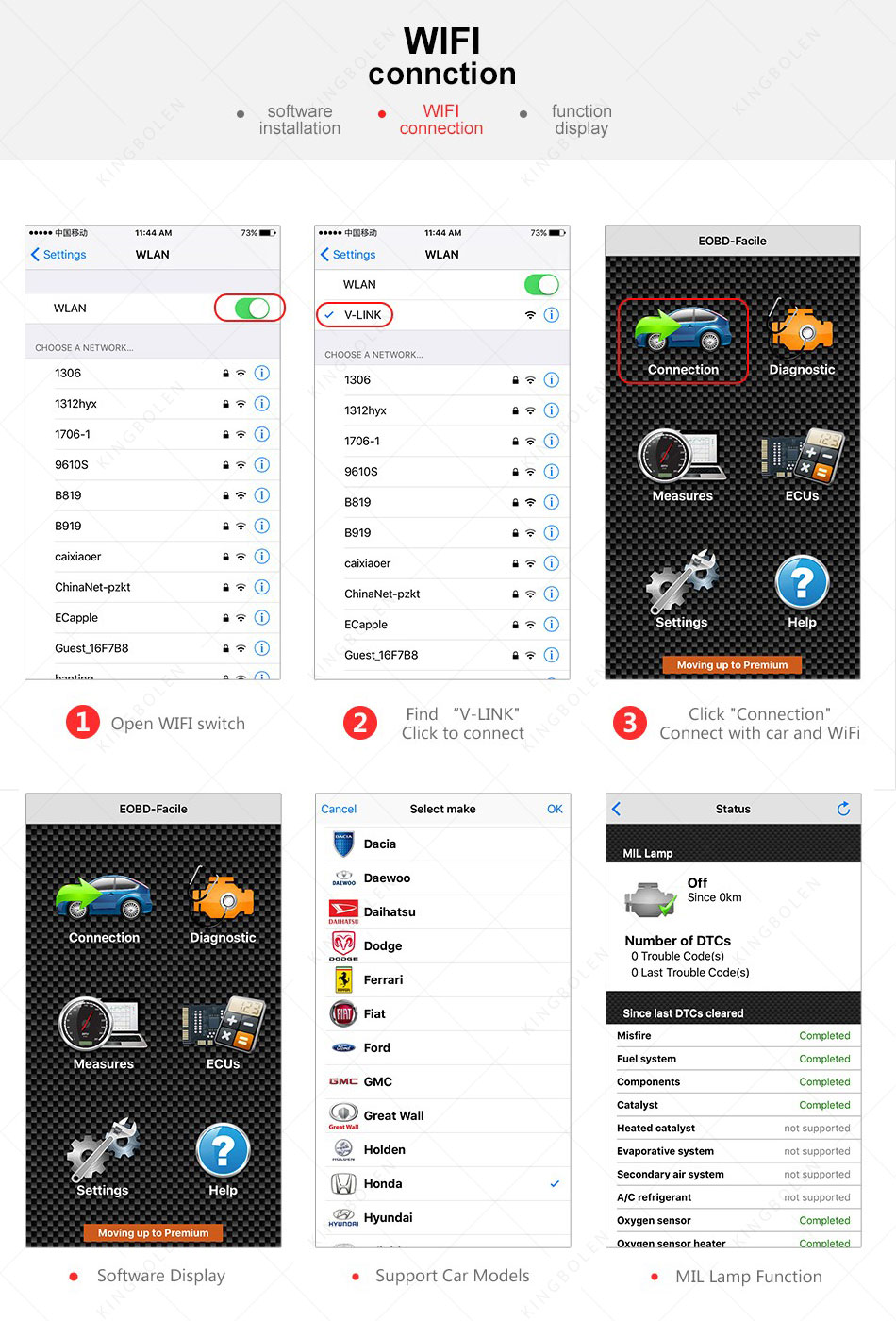

B: On IOS Phone:

1. Open WIFI switch
2.Find "V-LINK"Click to connect
3.open APP, click "Connection", connect the car with WIFI
